¥175,481 JPY ¥183,600 JPY
| /
| Brand | SPOON |
| Series Name | INTERCOOLER KIT |
| Product Number | 19710-JG3-000 |
| Compatible Car | HONDA N-ONE JG3 RS 6MT ZENKI |
| Compatible Engine | S07B |

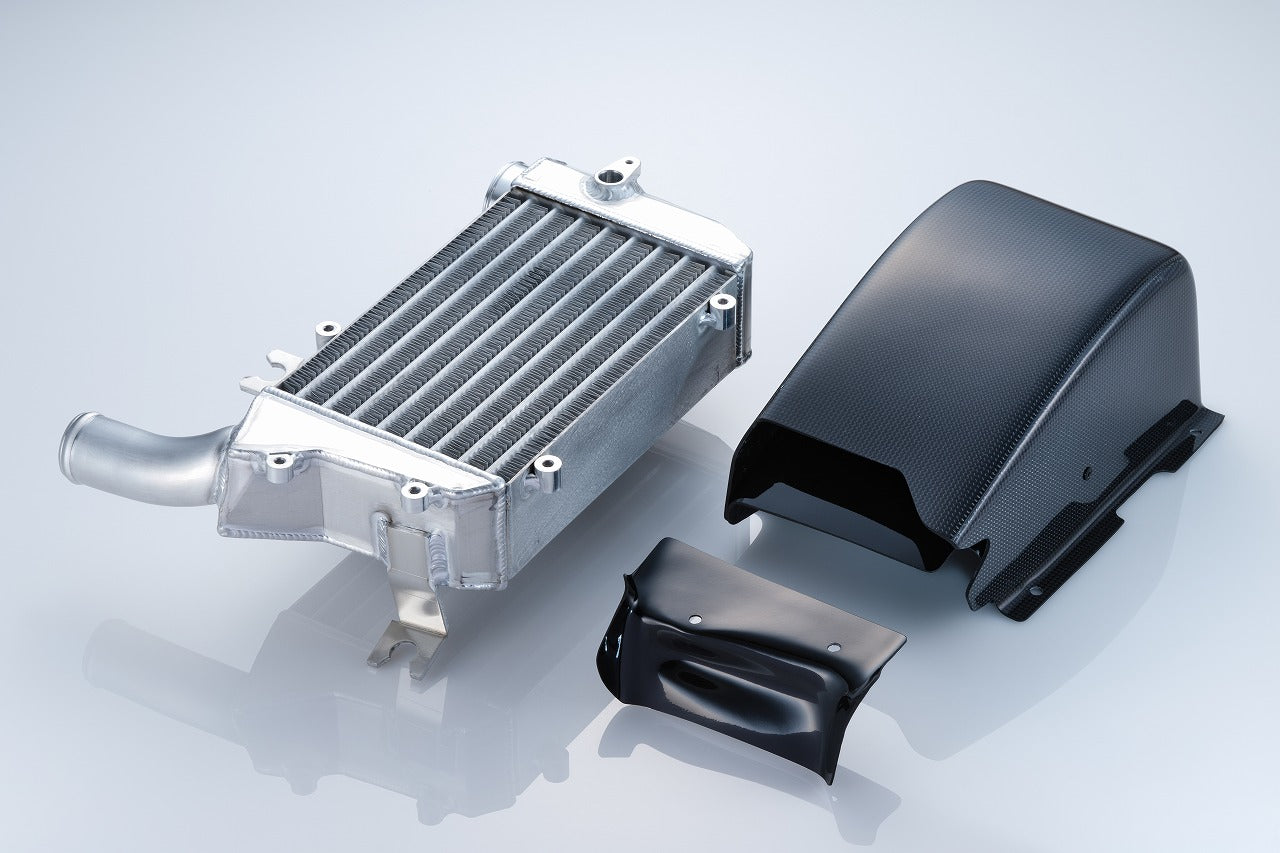

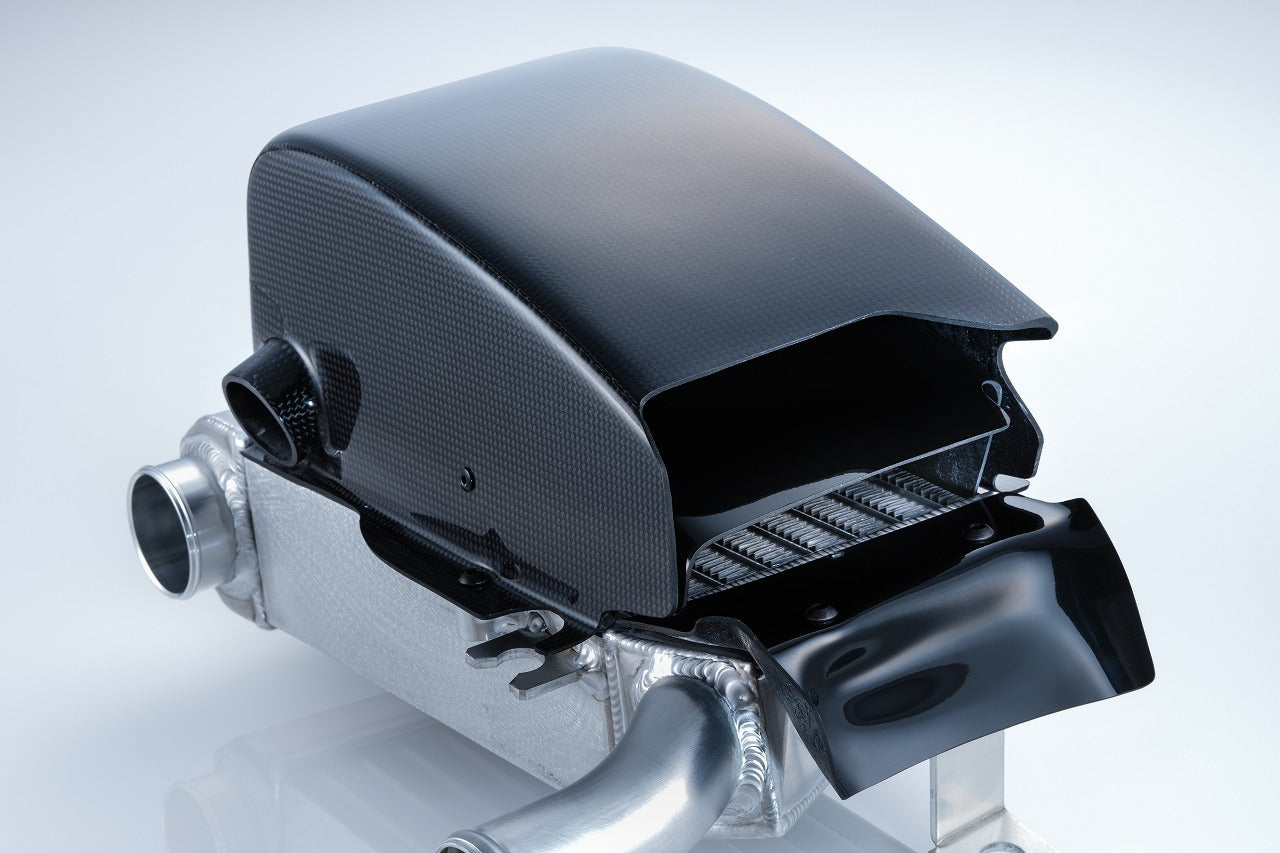

| Product Description | We installed a big turbocharger kit on the N-ONE, and while we were setting up, we faced a plateau in output due to a rise in intake air temperature. Therefore, we started developing parts to lower the intake air temperature, and considered increasing the capacity of the intercooler and optimizing the intake layout. With a displacement of 660cc, the absolute flow rate of intake air is small, and even if the intake air temperature can be lowered by increasing the size of the intercooler, the flow velocity inside the core will decrease and the heat exchange efficiency will decrease. A drop in the intake air temperature improves output, but in actual driving, the significant decrease in flow speed reduces the accelerator response and degrades drivability. In order to realize moderate size and flow resistance with good heat exchange efficiency without sacrificing accelerator response, we repeated trial and error such as changing the shape of the side tank and core, and achieved a balance between output and drivability. The intercooler has been completed. Also, along with the increase in size of the intercooler, the N-ONE's characteristic air intake layout has also been changed significantly. N-ONE's air duct has two functions: guiding air to the intercooler and engine intake. However, since the main focus is on cooling the intercooler, the air intake is placed in the engine room and always takes in hot air from the engine room. We changed the intake duct to a forward-facing two-layer structure so that the intercooler can be cooled and the engine intake can be done from near the front grille. The upper layer is for the engine intake and the lower layer is for cooling the intercooler, realizing an intake layout that further lowers the intake air temperature. It is effective not only for full-normal vehicles, but also for boost-up specifications and upgraded turbos, and supports various tuning stages. With this intercooler kit, your N-ONE can maintain a stable output, making your car even more enjoyable. Remarks & special notes Intercooler aluminum core capacity 2.2 times Intake duct carbon intake/cooling 2-layer structure I will. Intercooler kit compatible calibration data available. *Please use the clutch kit (22500-JG3-001) when using with the big turbo kit. Installation Instructions https://www.spoonsports.jp/blog/wp-content/uploads/2023/04/3df7e18df59fee6dfe2616da77f9a324.pdf |
| Remarks | Compatible Models: 6BA-JG3 RS 6MT ZENKI |
| Notes | Images are for illustration purpose only. Actual product may vary. |
