Defi Sports Display F ADVANCE Control Unit Set DSDF DF15902 (ADVANCE Control Unit & Sensors Included)

Summary

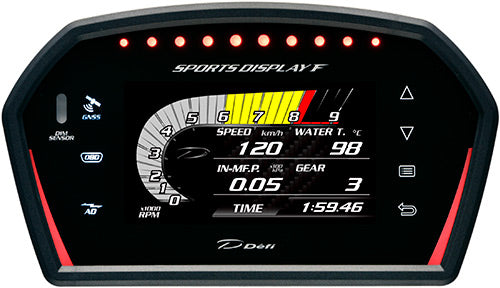

Defi Sports Display F is a multi-information display with a lap timer.

<Release: January, 2018>

DSDF displays data obtained from ADVANCE system, OBDII connector, and GNSS (Global Navigation Satellite System including GPS). In addition, driving data can be recorded, replayed, and analyzed by connecting a USB flash drive (commercially available).

Lineup

*DF15902
Defi Sports Display F ADVANCE Control Unit Set
（Set of DF15901, ADVANCE Control Unit, and sensors)

Main Features and functions

• 4.2inches touch panel TFT color LCD, a dim sensor, and a low reflection glass enhances the operatability and the readability.

• The display pattern can be selected from 3 patterns. (Patterns will be added later.)

• Data obtained from 3 different devices can be displayed in one screen.
  -Location information from GNSS
  -ISO CAN data from OBDII
  -Sensor information by linking with the ADVANCE system

• Sequential indicators of 10 red LEDs

• Driving data can be recorded, replayed, and analyzed by using a commercially available USB flash drive. The system can be updated too.
  *A PC wired to the internet is necessary to analyze data and update the system.

• A separate switch unit which is easy to push by fingers with racing gloves is included in the package.

• Mounting brackets are included and the paper templates are attached.


Warning

• Defi-Link ADVANCE Control Unit and sensors are necessary to be installed to obtain senser data from ADVANCE System. A GNSS antenna and OBDII connector is included in the package.
• A commercially available USB flash drive is necessary to record, replay, and analyze driving data.
• Defi Sports Display F is expressed as DSDF.
• The images may differ from real products due to the photography conditions and improvement of specifications.
• The specifications may be changed without notice in order to improve performance.
• Please refer to the manual for details.
