¥205,039 JPY ¥294,800 JPY
| /
| Brand | HKS |

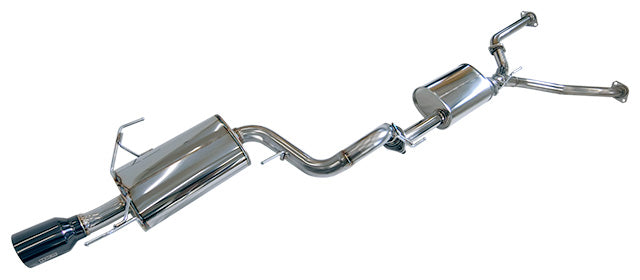

| Series Name | LEGAMAX TRAILMASTER EXHAUST |
| Product Number | 31021-AT010 |
| Compatible Car | TOYOTA LAND CRUISER 3BA-VJA300W |
| Compatible Engine | V35A-FTS |
| Product Description | YEAR: 21.08~ Applicable grades: ZX / VX / AX / GX / GR SPORT, Diesel vehicles cannot be installedMuffler shape: N-4 (LEGAMAX TRAILMASTER)Main Material: S304Tail Outer Diameter: 124 L&RIntermediate Pipe Diameter: 60 × 2 → 70 → 74.7 (*1)Nearby exhaust noise: normal 77 / HKS 77Ground clearance when installed (※2): Number 303mm / Kit target area Intermediate silencer HKS product weight: 22.3kgThe large diameter φ124 tailpipe is designed to match the size of the Land Cruiser. The surface of the tailpipe is black coated to create a sophisticated and sophisticated tuning style.Designed with adult tuning in mind, this muffler can be used safely in residential areas and for family use.The straight structure improves exhaust efficiency. The muffler allows the engine to run powerfully from 2500 rpm up to the rev limit, and accelerates smoothly and stress-free when you step on the accelerator.The sound has been tuned to allow you to enjoy the sound of the V6 engine. The deep bass, with a presence befitting the Land Cruiser's class, envelops the vehicle, creating a refined and solid sound.The system effectively suppresses booming noise inside the cabin when driving at constant speeds on highways, etc., ensuring comfort even in the rear seats, where booming noise is particularly noticeable.In addition to eliminating the unpleasant muffled sound that resonates inside the cabin during normal operating ranges, we also paid particular attention to the volume and sound quality during cold starts and idling.Appearance:We pursue not only performance but also attention to detail.The main muffler is TIG welded and carefully finished by skilled craftsmen one by one.The products born from outstanding technology have excellent strength and a beautiful finish.The tail pipes are black-coated to accentuate the texture, and the silencers have a polished finish that gives them a lustrous shine. The large-diameter tail pipes that match the bumper line accentuate the rear view of the Land Cruiser, and the black coating gives a stylish impression.We have refined the previously used "EXHAUST TECHNOLOGY" to simply state "EXH TECH" together with the HKS logo, creating a logo that conveys technical prowess and sophistication. Above 2500 rpm, power output improves across the entire range, and the engine runs smoothly up to the rev limit.The assembly section of the mid-pipe has been optimized, and the inside of the main silencer has been changed from a partition structure to a straight structure, improving exhaust efficiency and achieving increased power from 2500 rpm.When joining or overtaking on the highway, stepping on the accelerator allows you to accelerate smoothly and without stress.Test vehicle: Land Cruiser 3BA-VJA300WVehicle specifications: All parts except the muffler are genuine |
| Remarks | * Regarding the notations in the graphs and tables: LTM: LEGAMAX TRAIL MASTER (this product)* Graphs and values are the results of in-house measurements. They may differ depending on the vehicle and measuring equipment.About HKS Muffler *1: Regarding intermediate pipes,the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.Note: Hooks, brackets, and stays are subject to change without notice.*Exhaust volume at idling |
| Notes | Images are for illustration purpose only. Actual product may vary. |
