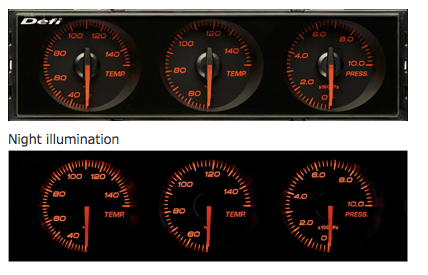

DIN-Gauge is a 1-DIN sized triple meter for providing information on a pressure and 2 kinds of temperatures. “DIN” is an abbreviation for Deutsche Industrie Normen(German industrial standard) and the most of audio hardwares are designed in the DIN size. DIN-Gauge can be neatly installed in a DIN sized vacant space in your automobile.
*DIN-Gauge cannot be linked to Defi-Link ADVANCE system or Defi-Link System.
Main specifications, functions, and features
- Standalone
- Commercial attachment necessary
- Stepping motor: STS26
- Sequential ceremony
- Dial color: black
- Illumination color: white/amber red
- Illumination ON/OFF: interlocked with vehicle illumination switch
- LED illumination
- 1DIN size
- The illumination color differs depending on the model. The color cannot be changed.
Warning
- DIN-Gauge cannot be linked to Defi-Link ADVANCE system or Defi-Link System.
- DIN-Gauge operates standalone. Control unit is not necessary.
Features
- Three guages are fitted into one DIN size.
- The front cover of the gauge has flat face glass.
- Opening and closing mode: The needle pointers of three gauges move sequentially.
- The three meters are angled towards the driver for a higher level of visibility.
- DIN-Gauges for right-hand drives and left-hand drives are available.
- Stepping motor:
*Maximum angle 270degrees is controlled by the microcomputer up to 4,600 divisions(0.059degrees) to provide high precision in the accuracy of information generated.
*Quick response which is sustainable in racing scenes. - Bright transparent green gauge dials and red instrument needle pointers are used in the gauges to increase visibility at night.
- The lights are produced from super high bright LED lamps.
Components
Lineup
| Part Number | Angle | Dial color | Color of characters | Illumination Color | Pointer Color |
| DF14401 | Right | Black | White | White | White |
| DF14402 | Right | Black | Amber Red | Amber Red | White |
| DF14403 | Right | Black | White | White | Red |
| DF14404 | Right | Black | Amber Red | Amber Red | Red |
