¥507,619 JPY ¥605,000 JPY
| /
| Brand | TODA RACING |

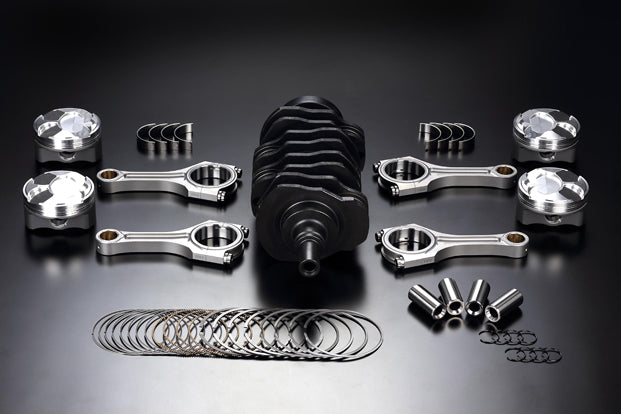

| Series Name | Increased Capacity 2300 KIT |
| Product Number | 13001-FA2-0R0-I |
| Compatible Car | TOYOTA 86 SUBARU BRZ |
| Product Description | The increased displacement improves low speed torque as well as the performance throught the whole rpm range.
High-Comp spec with the compression ratio 0.7 higher than std (12.5:1)
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability. Engine type: FA20 Bore×Stroke: 89.20×90mm Displacement: 2250cc Crown Volume: 1.07cc/-1.43cc Projection Height: -0.5mm Reference C/R: TODA head GK t=0.6mmξ≈13.2:1 |
| Remarks | *1:Crown volume is measured "from the piston shoulder"/"from the deck of the block". *2:Piston shoulder height is measured from the deck of the block. *3:The compression ratios given above are only to be taken as a guide, measurements are required |
| Notes | Images are for illustration purpose only. Actual product may vary. |
