TODA RACING Increased Capacity 2400KIT NA I Type Ultra High Comp For S2000 F20C F22C 13001-F20-401-IH

¥842,647 JPY ¥1,004,300 JPY

| /

Brand
TODA RACING
Series Name
Increased Capacity 2400KIT NA I Type Ultra High Comp
Product Number
13001-F20-401-IH
Compatible Car
S2000
Compatible Models
F20C F22C
Product Description

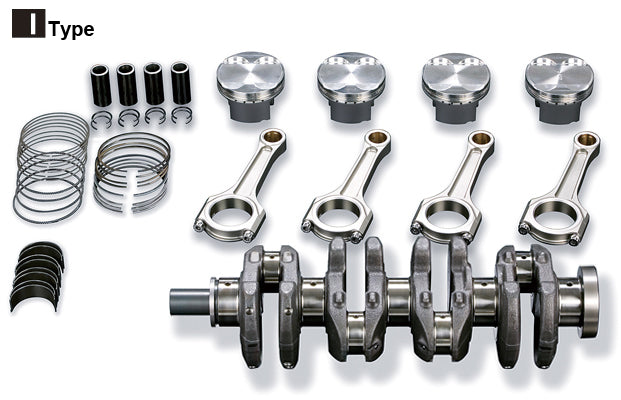

Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.
Strengthened chrome molly I section connecting-rods are included.
Engine Type: F20C/F22C 2400KIT-IH (2405)
Bore×Stroke: ø87.50×100mm
Displacement: 2405cc
Crown Volume: 3.3cc/9.3cc
Projection Height: +1.0mm (from the deck of the block)
Reference C/R: Standard head GK t=0.6mmξ≈13.2:1
Remarks
Based on standard piston pin diameter.
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:The compression ratio given above are only to be taken as a guide, measurements are required.
Notes
Images are for illustration purpose only. Actual product may vary.
