¥401,541 JPY ¥427,900 JPY
| /
| Brand | M&M HONDA |
| Series Name | AP RACING BRAKE SYSTEM TYPE 2 L285-10 MODEL |
| Product Number | 00600-JW5-2L285-10 |
| Compatible Car | S660 JW5 |

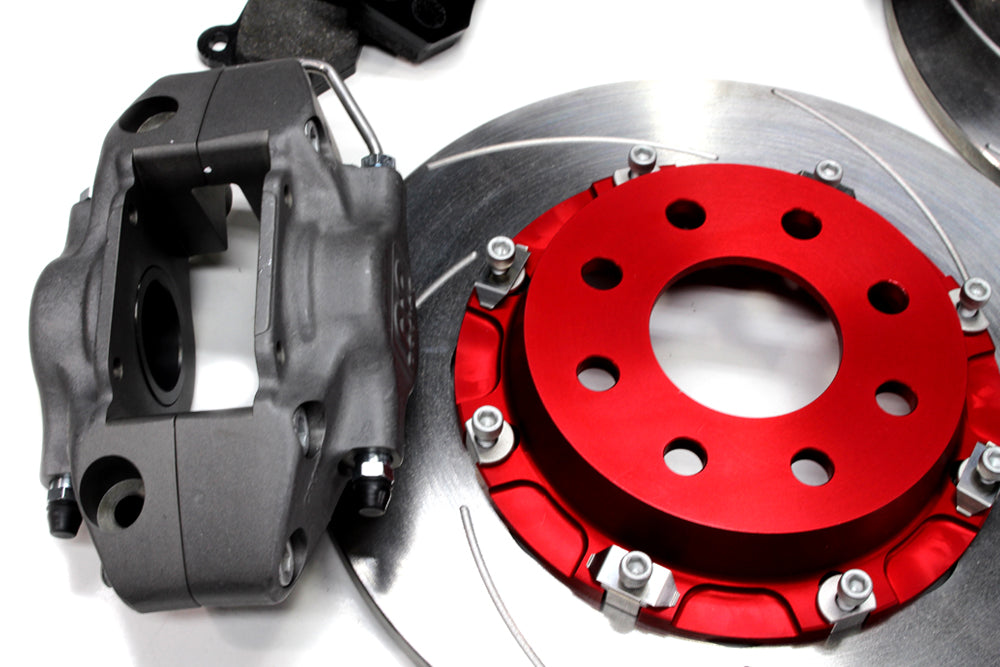

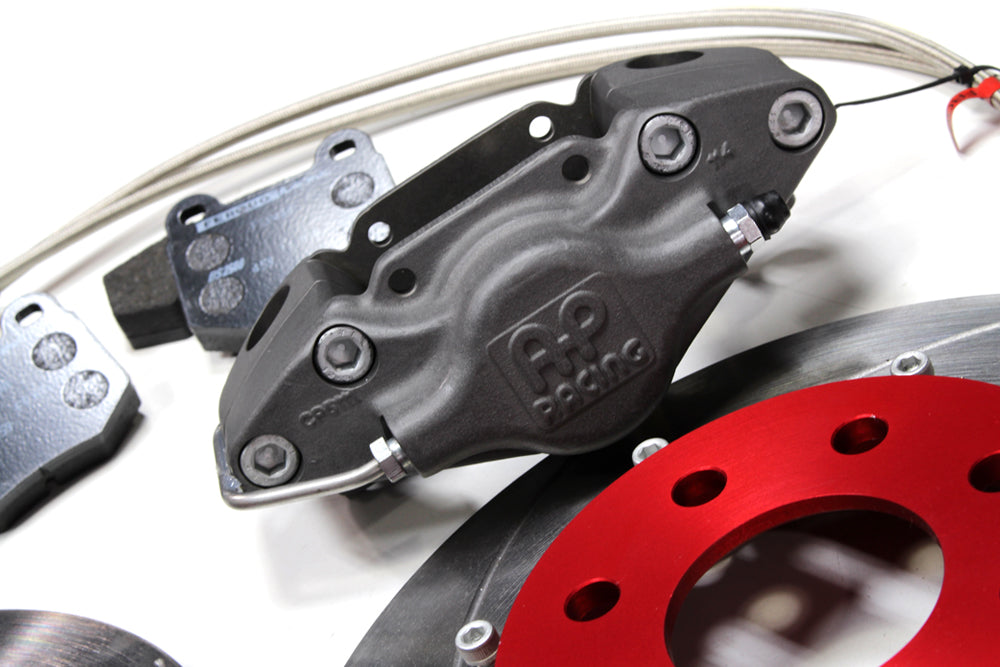

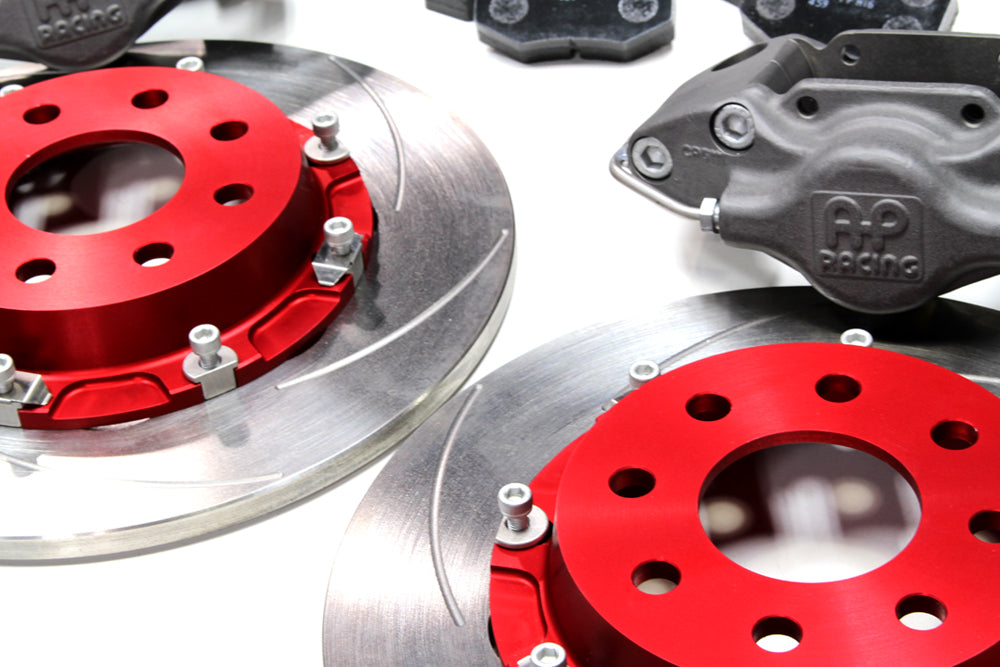

| Product Description | The AP Racing 2-piston brake caliper, which is famous in the world racing scene, and the brake rotor can experience a different dimension of braking force by combining a big rotor that has been greatly expanded from the genuine 259 mm to 285 mm × 10 mm. increase. It is a set price of a special brake pad, a stainless mesh brake hose and a special bracket for each model. The caliper weight is 1.5Kg, which is more than 1Kg lighter than the genuine 2.6Kg. We will sell the best front brake system for serious circuit users by combining an ultra-lightweight model 2-piston brake caliper made by AP Racing, which is famous in the racing world, with a large diameter rotor of 285 mm. It is the release of the ultimate braking system that does not make you feel the deterioration of braking performance not only on the street but also on long drives on the circuit. The 2-piston size promises stable braking force by using a large diameter of 44.5φ. In the case of S660, there is a limit to the thickness of the rotor, and in the ventilated type, we adopted a big rotor that is extremely thin and easily deformed by heat under harsh conditions such as circuit driving, and is upsized with a single rotor. The floating brake rotor (front only) is not fixed by the bell housing (fixed to the hub body when the tire is attached) and the disc rotor is not fixed by the bobbin of the bell housing (floating processing) and moves about 0.2 mm. I am. The normal type is fixed and naturally does not move. This movement makes it difficult for the judder to escape during braking and for vibration to occur. Rotors with slits are prone to judder, so they may be floated. This structure was adopted in the Nissan GTR for the first time in motor sports cars (GT races) and commercial cars. Bolt-on mounting is possible with a special design for each model. https://www.apracing.com/drawings/cp6120_1cd. pdf ■ 2L / 285-102 Piston, Rotor diameter 285mm (Genuine 259mm), Thickness 10mm, Weight 1.5Kg, Caliper color / Racing silver ■■ Specifications ■■ Caliper / Ultralight aluminum block 2 piston Racing caliper Special model type S / CP6120 Weight 1.5Kg (no pads) Genuine comparison 2.6Kg Color / Racing silver rotor / Limited lightweight type 2 piece slit rotor 285 × 10mm (genuine 259mm) 6 slits / with rotation direction Rotor material / FCD ductile cast iron rotor used bell hat / limited Large diameter high hardness Duralmin bell housing used Racing full floating processing / Lightweight processing Alumite processing Color / Silver, Gold, Black Select from Custom colors / Red, Blue 10,000 yen (excluding tax) Up bracket / High hardness Duralmin Bracket for each model Brake pad / Dedicated Brake Pads Ferrode Racing Brake Hose / Dedicated Stainless Mesh Brake Hose may not be installed depending on the wheel size, wheel shape, and offset size. Also, please note that it may be adjusted with a wheel spacer or the like. Please install and use at your own risk. Some parts require specialized knowledge and tools, so be sure to consult a specialized shop. Please be sure to give this manual to the customer after installation. Please note that we are not responsible for any processing, assembly failure, malfunction due to misuse, accident, etc. of this product. 6Kg color / Racing silver rotor / Limited lightweight type 2 piece slit rotor 285 × 10mm (genuine 259mm) 6 slits / with rotation direction Rotor material / FCD ductile cast iron rotor used bell hat / limited large diameter high hardness duralumin bell housing used racing full Floating processing / Lightweight processing Alumite processing Color / Select from silver, gold, black Custom color available / Red, blue 10,000 yen (excluding tax) Up bracket / High hardness duralumin Model-specific bracket Brake pad / Dedicated brake pad Ferrode racing brake hose / Depending on the wheel size, wheel shape, and offset size, it may not be possible to install the dedicated stainless mesh brake hose. Also, please note that it may be adjusted with a wheel spacer or the like. Please install and use at your own risk. Some parts require specialized knowledge and tools, so be sure to consult a specialized shop. Please be sure to give this manual to the customer after installation. Please note that we are not responsible for any processing, assembly failure, malfunction due to misuse, accident, etc. of this product. 6Kg color / Racing silver rotor / Limited lightweight type 2 piece slit rotor 285 × 10mm (genuine 259mm) 6 slits / with rotation direction Rotor material / FCD ductile cast iron rotor used bell hat / limited large diameter high hardness duralumin bell housing used racing full Floating processing / Lightweight processing Alumite processing Color / Select from silver, gold, black Custom color available / Red, blue 10,000 yen (excluding tax) Up bracket / High hardness duralumin Model-specific bracket Brake pad / Dedicated brake pad Ferrode racing brake hose / Depending on the wheel size, wheel shape, and offset size, it may not be possible to install the dedicated stainless mesh brake hose. Also, please note that it may be adjusted with a wheel spacer or the like. Please install and use at your own risk. Some parts require specialized knowledge and tools, so be sure to consult a specialized shop. Please be sure to give this manual to the customer after installation. Please note that we are not responsible for any processing, assembly failure, malfunction due to misuse, accident, etc. of this product. 000 yen (excluding tax) Up bracket / High hardness duralumin Vehicle-specific bracket Brake pad / Dedicated brake pad Ferroad racing brake hose / Dedicated stainless mesh brake hose Depending on the wheel size, wheel shape, and offset size, it may not be possible to install. .. Also, please note that it may be adjusted with a wheel spacer or the like. Please install and use at your own risk. Some parts require specialized knowledge and tools, so be sure to consult a specialized shop. Please be sure to give this manual to the customer after installation. Please note that we are not responsible for any processing, assembly failure, malfunction due to misuse, accident, etc. of this product. 000 yen (excluding tax) Up bracket / High hardness duralumin Vehicle-specific bracket Brake pad / Dedicated brake pad Ferroad racing brake hose / Dedicated stainless mesh brake hose Depending on the wheel size, wheel shape, and offset size, it may not be possible to install. .. Also, please note that it may be adjusted with a wheel spacer or the like. Please install and use at your own risk. Some parts require specialized knowledge and tools, so be sure to consult a specialized shop. Please be sure to give this manual to the customer after installation. Please note that we are not responsible for any processing, assembly failure, malfunction due to misuse, accident, etc. of this product. |

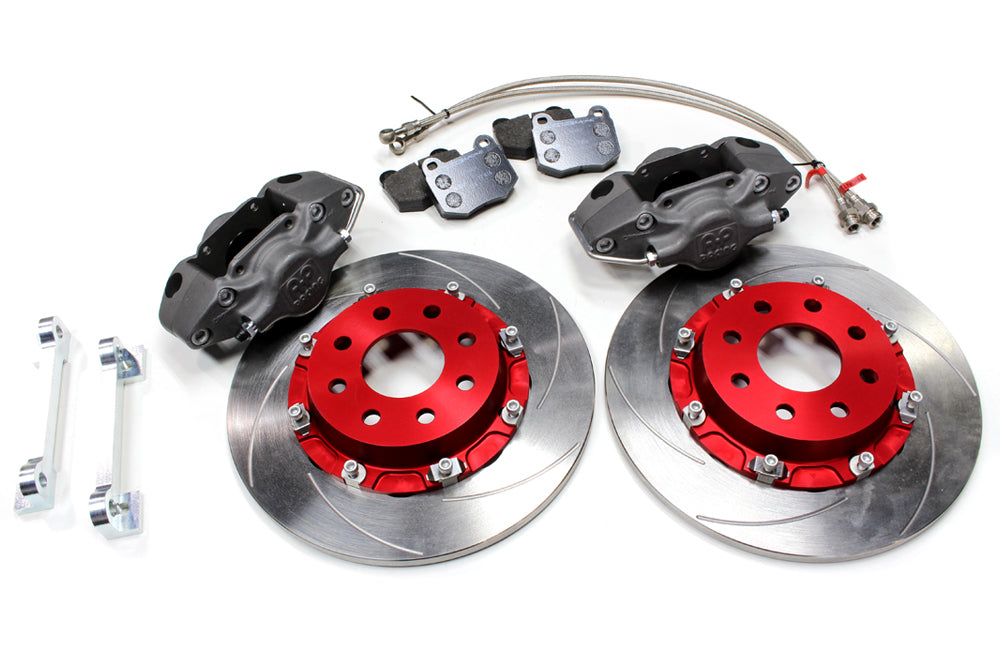

| Remarks | Set price; AP Racing Caliper / 2 Piston Racing Brake Rotor / 285-10mm Slit 6 High Rigidity Duralmin Bell Housing Brake Pad / Dedicated Ferrode Racing Brake Hose / Dedicated Stainless Mesh Brake Hose Bracket / Dedicated High Rigidity Duralmin Bracket Caliper Color / Racing Silver Bell color / select from black, silver, gold Custom color / red, blue is 10,000 yen plus tax |
| Notes | Images are for illustration purpose only. Actual product may vary. |
