¥36,432 JPY
– Discontinued| /
| Brand | BLITZ |

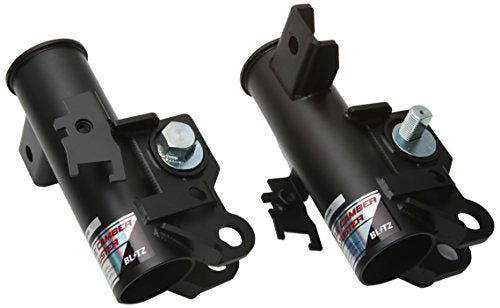

| Product Name | MIRACLE CAMBER ADJUSTER Front |
| Product Number | 92004 |
| Compatible Car | TOYOTA ALPHARD AGH30W |
| Compatible Engine | 2AR-FE |
| Product Description | Model Year: 15 / 01-18 / 01 Chassis Model: AGH30W Product Name: MIRACLE CAMBER ADJUSTER Front camber adjustable range (Camber): -4 ° 30 '~ + 0 ° 30' < br> DAMPER ZZ-R mounted vehicle height adjustment range: -80 ~ 0 Description: the camber angle of the suspension can be freely and easily changed, DAMPER ZZ-R series dedicated option bracket. And for a front corresponding to strut suspension, set by vehicle type and for rear mounting on the lower arm mounting portion. hole shape by type of vehicle dedicated bracket employing the eccentric cam and by moving the dedicated bolt accordingly, can be adjusted camber angle in a simple and wide range stepless. freely by the camber angle can be adjusted, optimized ground conditions of the tire during low down width of alignment is widened, improving running performance, suppression of uneven wear, also adjustment at wide wheel mounting easy. Stay to secure the brake hose and ABS line is also standard equipment. Possible bolt mounted so Some models are also optimized mounting position of the stabilizer link. Rear is by optimizing the position of the lower arm, it improved running performance by extending the same time the suspension of the motion and to correct the roll center. |
| Remarks | 2WD, side lift-up seat equipped car mounting Allowed, wheel base is required for equal to or greater than the minimum ground clearance of 100mm of 3000mm |
| Notes | Images are for illustration purpose only. Actual product may vary. |
