¥419,259 JPY ¥602,800 JPY
| /
| Brand | FUJITSUBO |
| Series Name | EXH PERFORMANCE UNIT |
| Product Number | 050-23215 |
| Compatible Car | TOYOTA ZN8 GR86 ZD8 BRZ MT |
| Product Description | Manual Transmission Year: 2021.7~ Outlet shape: φ101.6 slash (12°) Pipe diameter: EX:φ45.0-φ54.0-φ65.0, Muffler:φ65.0-φ70.0 Accessory List: • 080-34500 O-Ring Gasket x 4 [Click here to purchase for repairs] • Toyota Genuine Gasket x 2 • M10 x 35mm Bolt x 4 • M10 Spring Washer x 5 • M10 Nut x 4 • Heat Insulation Mat (50 x 500) x 2 • Heat Insulation Mat (70 x 80) x 1 • Heat Insulation Mat (50 x 400) *Adhesive Type x 1 • Ti Thermo Bandage 5cm x 15m x 2 • Stainless Steel Wire (1m) x 10 • O2 Sensor Extension Harness Kit (250 Shell 4-Pole Specification l1400) x 1 • Tie Wrap (Medium) x 4 • Copy of Automobile Test Certificate x 2 • Aluminum Tape 50 x 50mm x 1 • Slit Clamp Mounting Kit SLIT-HC70 x 1 • 080-37601 Plate Gasket x 1 [Click here to purchase for repairs] • M10 x 20mm Flange Bolt x 2 • M10 flange nuts x 2 • M10 x 30mm bolt x 1 • M10 plate washer x 1 • Grommet x 1 • ZN8 dedicated fittings (for A-RM 260-23214) x 1 • M6 x 18mm trimmer sems bolts x 2 • Color pipe (φ13, l14) x 1 |

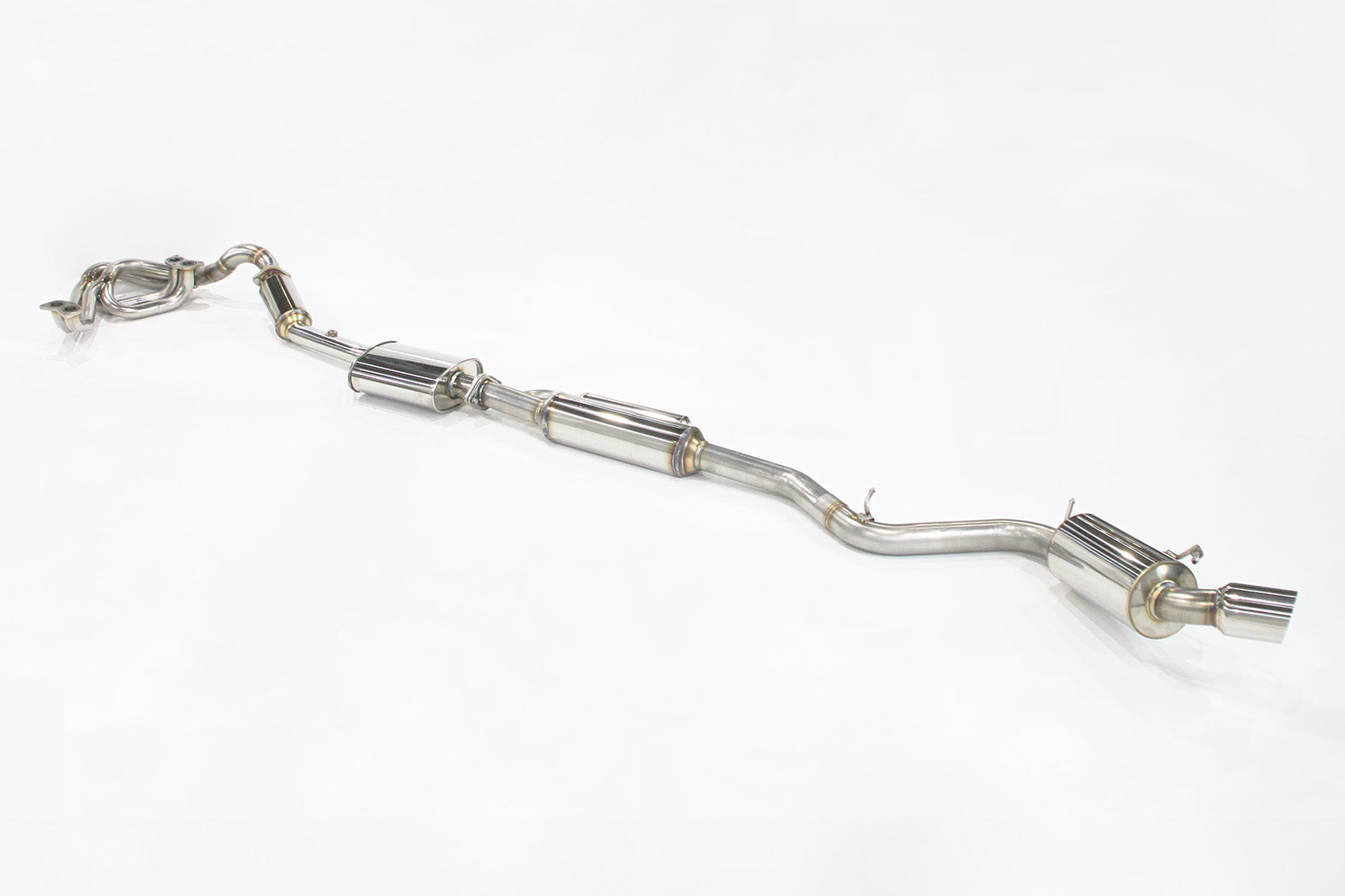

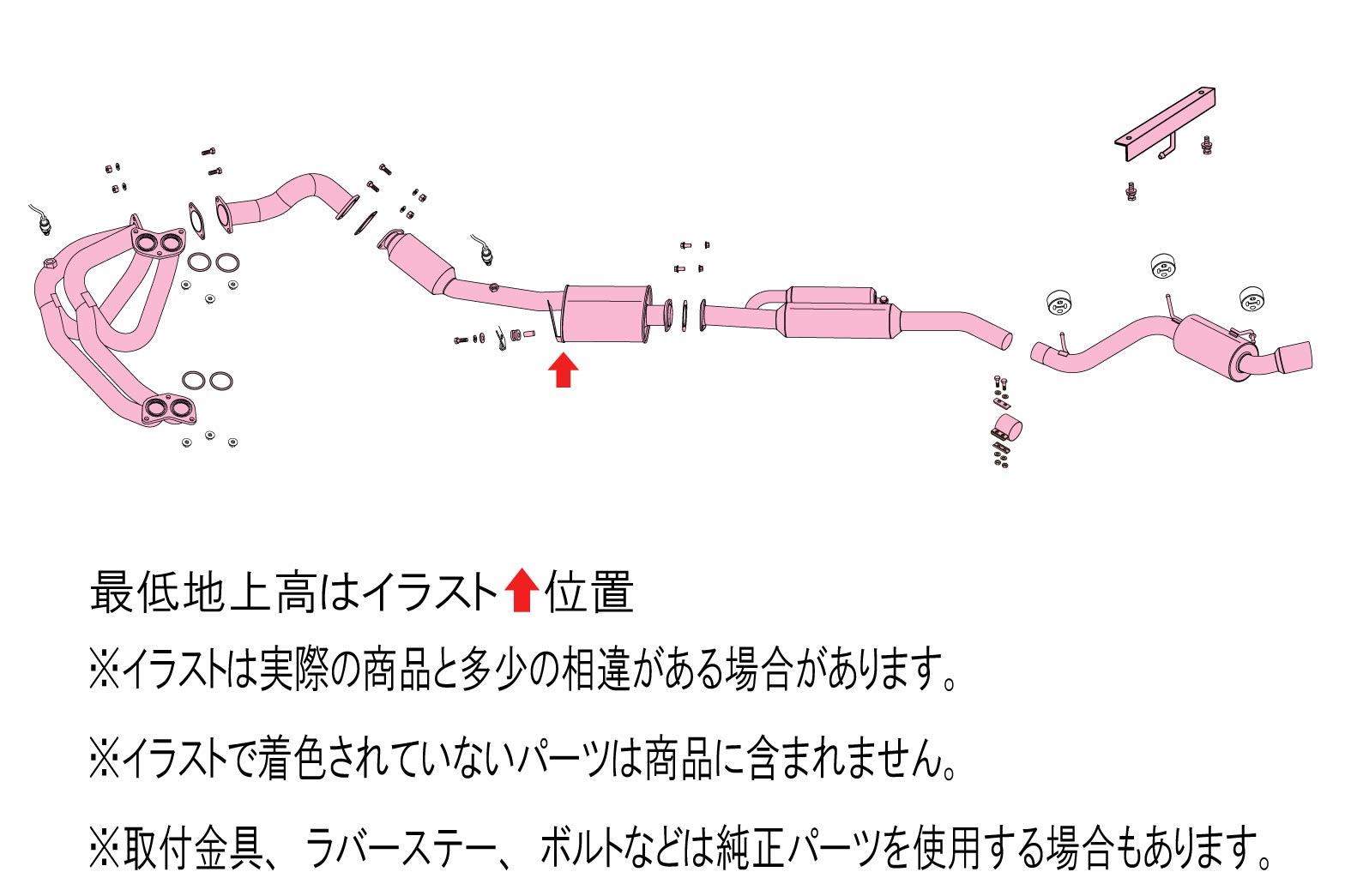

| Remarks | This is a set consisting of an exhaust manifold, sports catalyst, and muffler (5 sections) for manual transmission vehicles. It will not comply with safety standards if used in combination with genuine or other exhaust parts. The O2 sensor harness must be modified (cut and extended). |
| Notes | Images are for illustration purpose only. Actual product may vary. |
