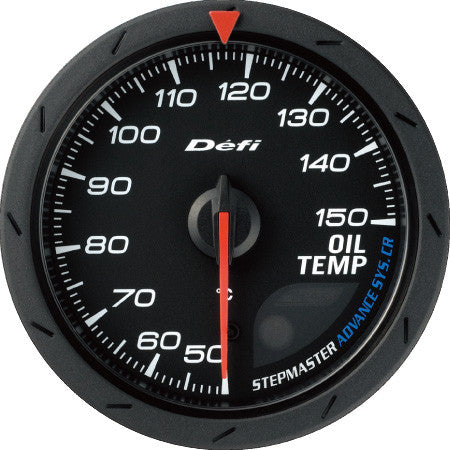

Defi Gauge Meter Advance CR Oil Temperature Meter (50 to 150 degrees C) 60mm Black DF09102

Defi

Defi-Link Meter ADVANCE CR is gauge series which need to be connected to Defi-Link ADVANCE Control Unit (DF07703, sold separately).

  • Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available.
    Color: White and black dials are available.
    Size: 52mm and 60mm are available. (Only 60mm is available regarding turbo120kPa, in-mani, fuel press, exhaust temp, and tachometer.)
  • Illumination color: Can be changed between two colors.
    White dial: Blue/Amber red
    Black dial: White/Amber red
  • One ADVANCE Control Unit operates up to 7 gauges or displays in total.

Main specifications, functions, and features

  • ADVANCE System
  • ADVANCE Control Unit necessary
  • Commercial attachment necessary
  • Stepping motor: STS26/VS2
  • Display color: dial white/black
  • Illumination color: Black dial->white/red, White dial->blue/red
  • Illumination ON/OFF: interlocked with vehicle illumination switch
  • LED illumination
  • Indicator output
  • Built-in indicators
  • Driving data can be recorded & replayed
  • Opening mode/Ending mode
  • Size: 52mm/60mm
  • Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
  • Mounting bracket attached
  • The illumination would be automatedly turned ON/OFF by connecting to ADVANCE ZD.

Lineup

  • Turbo(200kPa/120kPa)
  • Intake manifold pressure
  • Oil pressure
  • Fuel pressure
  • Oil temperature
  • Water temperature
  • Exhaust temperature
  • Tachometer

Warning

  • The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.
  • Defi-Link ADVANCE Control Unit is necessary to operate ADVANCE CR gauges (DF07703, sold separately).
