J'S RACING REAR ROLL CENTER ADJ 20MM KNUCKLE ASSEMBLY LEFT FOR HONDA S2000 AP1 F20C RCJ2A-S1-20L

J'S RACING

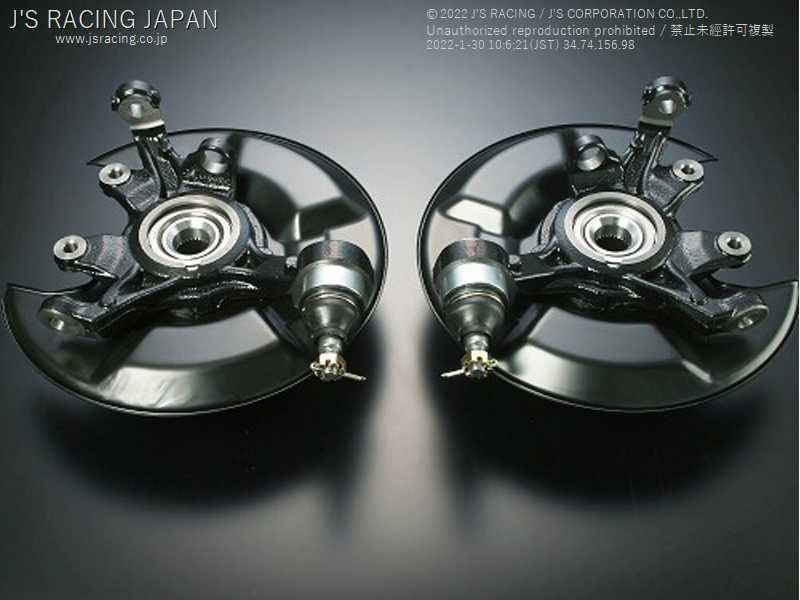

REAR ROLL CENTER ADJ 20MM KNUCKLE ASSEMBLY LEFT

RCJ2A-S1-20L

HONDA S2000 AP1

F20C

Material: Tylot End S45C Tylot End Ball Stud SCM435
J'S RACING SPL Rear Roll Center Adjuster (20mm)
・ Rear Knuckle
・ Hub Bearing
・ Circlip
・ Hub ASSY
> ・ It is an ASSY product that has been precision-assembled with new genuine parts such as the back plate.
It can be installed without the need for a press-fitting process.
It also contributes to refreshing the hub bearing, which tends to play.
(J'S RACING S2000 Roll Center Adjuster 20mm)
Ball Joint S45C
Ball Stud SCM435 HB195-260 Swing Angle All Circumference 39 °
20mm Extension Type
S2000 Roll Center Corrected Ideal Introducing special parts that can be changed to a typical geometry.

The lower arm angle of the S2000, which has been lowered, has an inverted C shape, and the roll center point is too low.
When the center of gravity of the car and the roll center are separated, the amount of roll increases and the cornering force is sacrificed.
Also, the suspension stroke is reduced and the limit is lowered.

By installing the J'S RACING roll center adjuster, the lowered roll center can be corrected to the ideal position (the distance between the center of gravity of the vehicle and the roll center is corrected to a short position), and the ideal suspension geometry. To realize.
[Mounting effect]
★ Reduced roll amount
★ Improved tire contact feeling

Engine: F20C
* This product is for the left. Please also purchase "for the right" for one unit.
* Cannot be installed on 16-inch wheel vehicles.
It is necessary to adjust the vehicle height and alignment after replacement.
Please follow the specified torque and install correctly.
* Please check the tightening of bolts and nuts regularly after mounting.
Please do this every time, especially before driving on the circuit.

Images are for illustration purpose only. Actual product may vary.
