MONSTER SPORT VX15S 17×7.5J 48 5x114.3 PREMIUM SPORT WHEEL FOR SUZUKI SWIFT SPORTS ZC33S 687100-7648MA

MONSTER SPORT

VX15S 17×7.5J 48 5x114.3 PREMIUM SPORT WHEEL

687100-7648MA

SUZUKI SWIFT SPORTS ZC33S

"Rim size (diameter x width): [inch] 17 x 7.5J
Inset: [mm] 48
PCD: [mm] 114.3
Number of holes: [-] 5
Nut hole: [mm] φ32
Hub inner diameter: [mm] φ66
Weight: Weight about 7.9kg
Estimated tire size: Estimated tire size 215 / 40R17 83W
Accessories: Accessories ・ Center cap × 1 ・ Air valve (aluminum / black) × 1
Others: Others ・ JWL standard, VIA standard compliant Sub-spokes are placed between the 5-spokes.

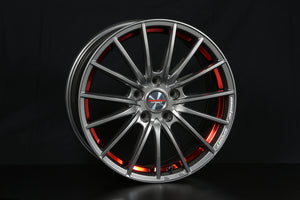

A sophisticated 15-spoke design with a slim yet voluminous shape and rigidity.
Gray metallic paint that tightens your feet while being expressive.
The crimson circle line is treated on the tapered ribs on the back side of the spokes, and the sports mind that is hidden inside is expressed as an accent.
The stretchy spokes from the wheel center to the end of the rim create a force suitable for a high-performance compact car.
By adopting spinning flow forming processing on the rim part, both thinning and strength are achieved.
While taking advantage of the face modeling unique to casting, we have suppressed the weight increase while increasing the size.
[Notes on conformity]
Even the vehicles listed in the above compatibility table are not compatible due to wheel alignment, tire brand, individual vehicle difference, vehicle height specifications, mounted suspension specifications, etc., due to tires or wheels protruding from the fender or interference. It may be.
We do not accept inquiries regarding conformance conditions. Please consult with the dealer or maintenance shop who is considering the installation work, and check the actual condition of the vehicle to be installed before considering it."

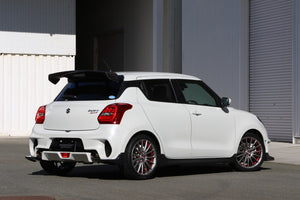

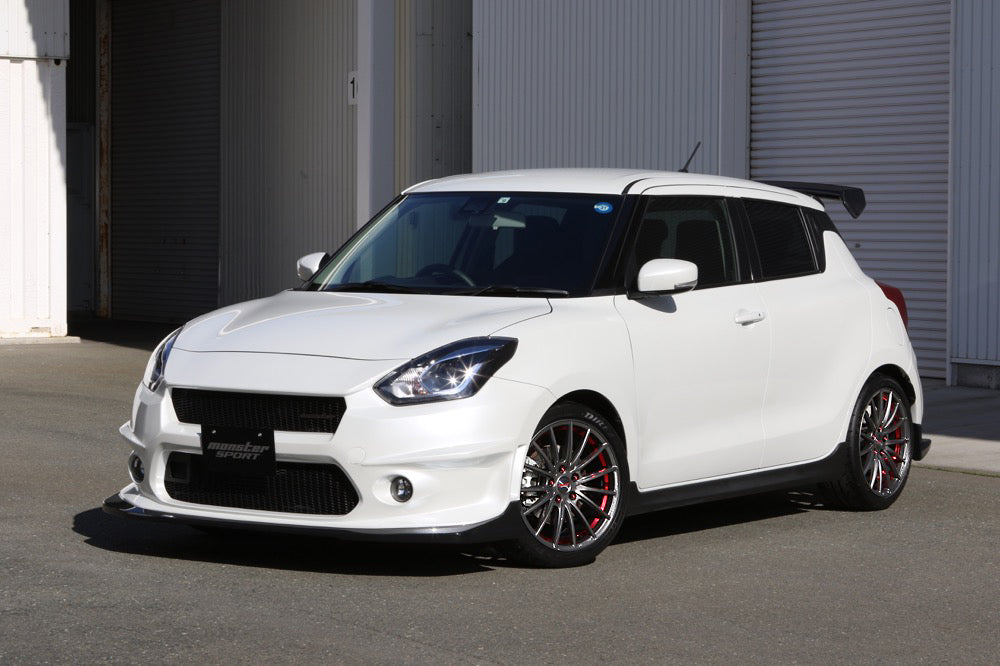

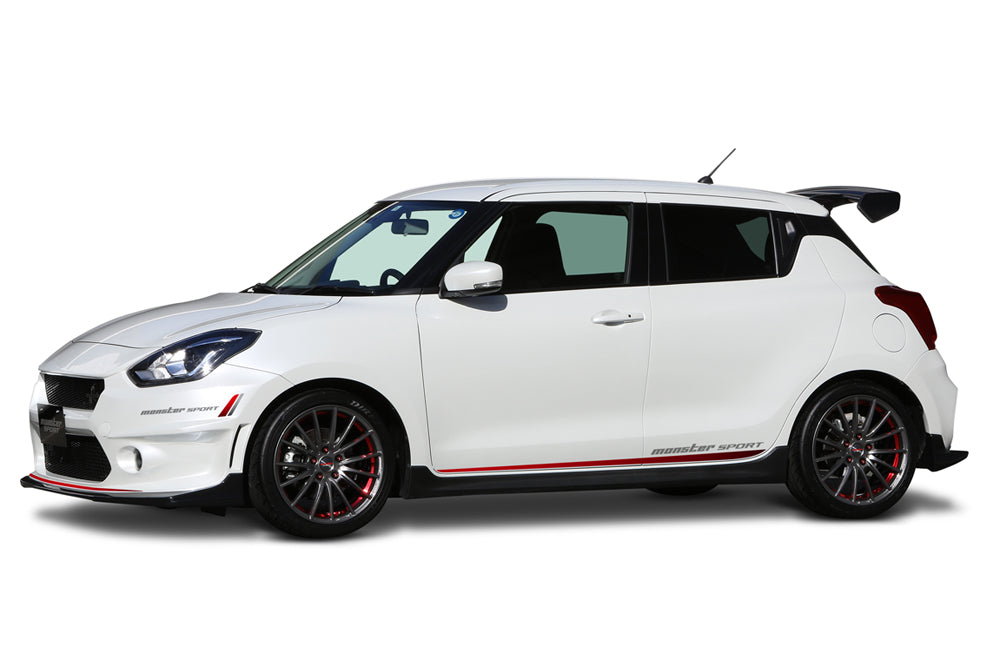

* Reference vehicle on this page 1: ZC33S Swift Sport DUNLOP DIREZZA ZIII [215 / 40R17 83W] Height approx. Vehicles equipped with LXtune spring
* The wheel nut seat surface of this product uses a 60 ° tapered seat, and wheel nuts for spherical seats and flat seats cannot be used.
* The nut hole diameter of this product is φ32. Please check the outer diameter of the wheel nut socket used in advance.
* Snow road tire chains cannot be used. Please note.
* Depending on individual vehicle differences, vehicle height specifications, mounting suspension specifications, tire brands, wheel alignment, etc., the tires or wheels may protrude from the fender or interfere with each other, and may not be compatible. In addition, we do not guarantee the conformity to the safety standards of road transport vehicles and the pass / fail of vehicle inspection when the vehicle is installed. Please consult your dealer or inspection agency and use it at your own risk for the final conformity judgment.
* Do not drive on public roads with the tires and wheels protruding from the fenders, as it is prohibited by law.
* When selecting tires, consult with an expert, including speed symbols and road indexes, to confirm that they are compatible with the vehicle and safe. If you install unsuitable tires, you may lose durability and safety.
* Please use the attached air valve. Also, install a new one. Deterioration or use of incompatible air valves can cause air leaks.
* Use a torque wrench to tighten the wheel nuts, and do not tighten them so that torque or impact is applied by the impact wrench.
* Aluminum alloys are prone to corrosion when salt, soil, snowmelting agents, and road surface antifreeze agents adhere to them, so if you drive along the sea, on snowy roads, or on roads where chemicals are sprayed, wash them with water. Please remove the kimono.
* This product meets the technical standards, but please note that excessive riding on uneven roads and curbs may cause distortion, cracks, and paint cracks on the rim.
* We do not accept inquiries regarding conformity conditions. Please consult with the dealer or maintenance shop who is considering the installation work, and check the actual condition of the vehicle to be installed before considering it.
* Please contact the Monster Pro Shop or your local dealer for a quote on tire assembly and wheel replacement work.
* When installing this product, read the instruction manual carefully, and use it after proper handling and safety confirmation.
* Specifications of this product may be changed or discontinued without notice. * Aluminum alloys are prone to corrosion when salt, soil, snowmelting agents, and road surface antifreeze agents adhere to them. please.
* This product meets the technical standards, but please note that excessive riding on uneven roads and curbs may cause distortion, cracks, and paint cracks on the rim.
* We do not accept inquiries regarding conformity conditions. Please consult with the dealer or maintenance shop who is considering the installation work, and check the actual condition of the vehicle to be installed before considering it.
* Please contact the Monster Pro Shop or your local dealer for a quote on tire assembly and wheel replacement work.
* When installing this product, read the instruction manual carefully, and use it after proper handling and safety confirmation.
* Specifications of this product may be changed or discontinued without notice. * Aluminum alloys are prone to corrosion when salt, soil, snowmelting agents, and road surface antifreeze agents adhere to them, so when traveling along the sea, on snowy roads, or on roads where chemicals are sprayed, remove the deposits by washing with water. please.
* This product meets the technical standards, but please note that excessive riding on uneven roads and curbs may cause distortion, cracks, and paint cracks on the rim.
* We do not accept inquiries regarding conformity conditions. Please consult with the dealer or maintenance shop who is considering the installation work, and check the actual condition of the vehicle to be installed before considering it.
* Please contact the Monster Pro Shop or your local dealer for a quote on tire assembly and wheel replacement work.
* When installing this product, read the instruction manual carefully, and use it after proper handling and safety confirmation.
* Specifications of this product may be changed or discontinued without notice.

Images are for illustration purpose only. Actual product may vary.
