¥26,863 JPY ¥30,240 JPY
| /
| Brand | MONSTER SPORT |
| Series Name | REAR CAMBER SHIM |
| Product Number | 586500-7650M |
| Compatible Car | SUZUKI SWIFT SPORTS ZC33S |

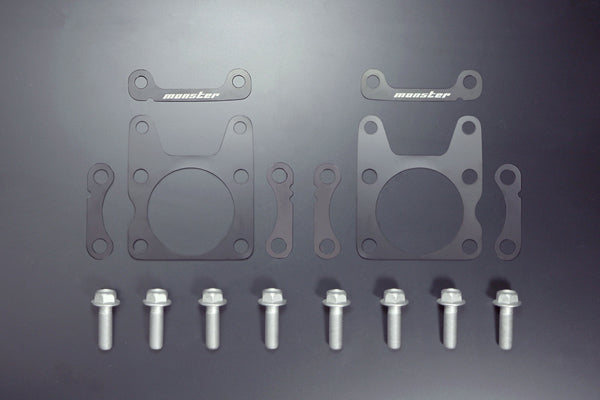

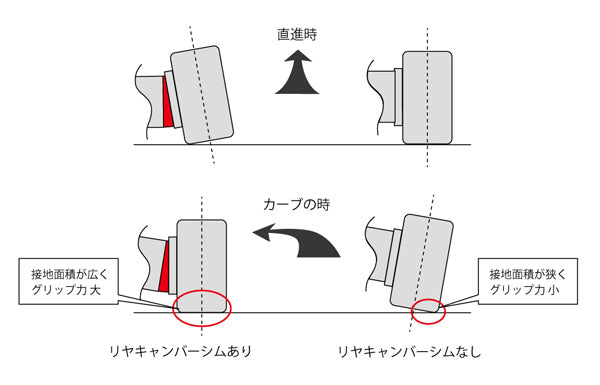

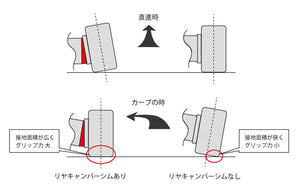

| Product Description | Material: Steel Specifications: Cationic electrodeposition coating (black) Alignment change: Camber angle: Approx. -1 ° Toe-in amount: Approx. -2mm Components: ・ Camber shim A × 2 ・Camber shim B x 2 ・ Camber shim C x 2 ・ Camber shim D x 2 ・ M12 flange bolt x 8 ■ Alignment setting By installing the camber shim, it is possible to set the ground camber angle of the rear wheel. It is possible to secure the tire contact area during cornering and improve the limit performance of the vehicle. By installing this product, the camber angle changes by about -1 ° and the toe changes by about -2mm compared to the normal state. (changes about 1 degree to the negative camber side and about 2 mm in the direction of weakening the toe-in) ■ Shape devise The shape is designed with a notch for identification to prevent incorrect assembly. |
| Remarks | * There are individual differences in the amount of alignment change due to vehicle manufacturing errors and deterioration deformation. * Performance will not be exhibited if the settings do not match the driving stage and road surface conditions. * With the addition of the camber angle, there is a possibility that the tires will be worn out. * Braking distance may be extended by installing this product. * The replacement work of this product corresponds to "disassembly and maintenance" under the law. * Specifications of this product may be changed or discontinued without notice. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
