¥30,700 JPY ¥34,560 JPY
| /
| Brand | MONSTER SPORT |
| Series Name | LOWDOWN SPRING SET |
| Product Number | 520502-4810M |

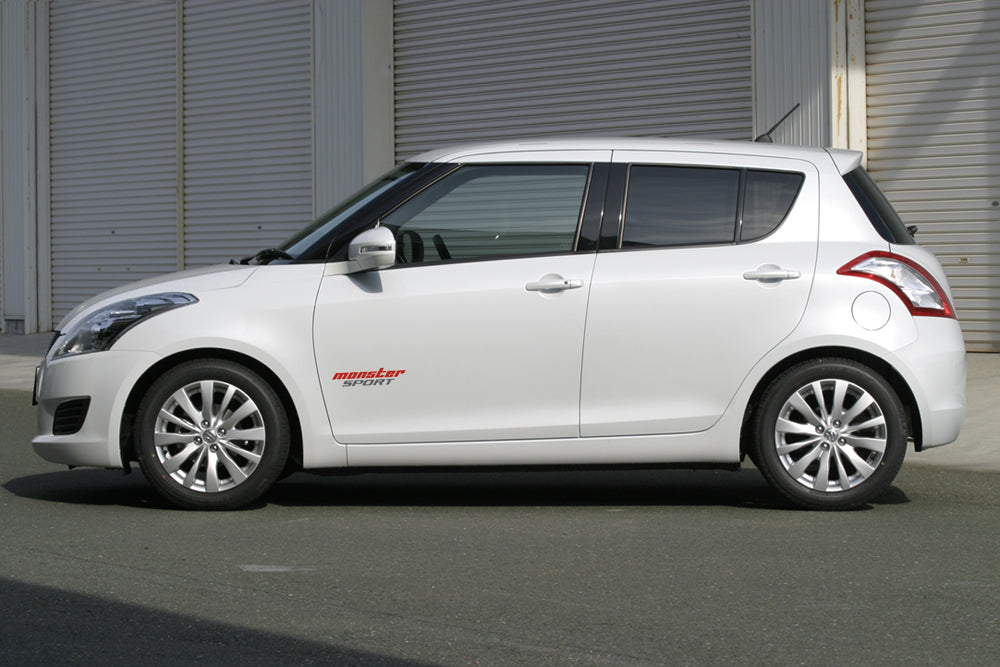

| Compatible Car | SUZUKI SWIFT RS ZC72S |
| Product Description | : Spring constant N / mm Spring constant (kgf / mm) Vehicle height down amount (reference) * 1, * 2 mm Minimum ground clearance (reference) * 2, * 3 mm Bump cushion specification Dedicated bump cushion Other safety standard compliant * 3 Front: 26.0 (2.7) -20 ~ -25 115 Normal product (unprocessed) Rear: 28.5 (2.9) -20 ~ -25 |

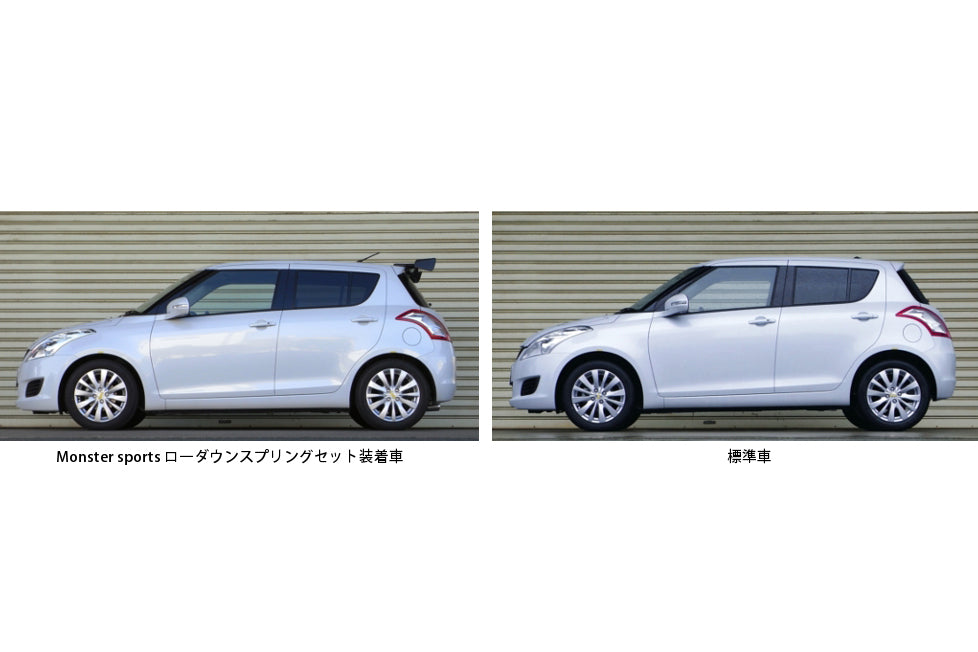

| Remarks | * "ASS": Idling stop system * 1 The ZC72S-3 type vehicle with ASS (idling stop system) has a lower normal vehicle height than the vehicle without ASS, so the amount of down is relatively small. [Vehicle height down amount (reference for vehicles with ASS) Front -10 to -15 mm / Rear -10 to -15 mm] In addition, the vehicle height (absolute value) after low down (when this product is installed) on vehicles with ASS and without ASS ) Is not much different. * 2 The figures are reference data for the Swift ZC72S CVT vehicle (non-RS / when full of fuel). It depends on the vehicle specifications (grade, presence / absence of supercharger, drive system, individual difference of vehicle, tire outer diameter, etc.), equipment and luggage condition, remaining fuel amount, etc. * 3 Reference data for the relevant parts related to the safety standards of the Road Transport Vehicle Law (as of December 2010) (all other than this product are normal products). In addition, it is limited to the case of use by the specified mounting and adjustment method. This does not apply depending on the combination of aero parts, exhaust system parts, etc. that are installed at the same time, and the changes over time of each part. * When installing this product, proper alignment (side slip) adjustment and optical axis adjustment are required. * Please also check here for vehicles equipped with genuine HID headlights. A special tool (SUZUKI scan tool "SUZUKI-SDT") is required to perform the initial settings of the headlight auto-leveling system on this vehicle. * Specifications of this product may be changed or discontinued without notice. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
