¥23,025 JPY ¥25,920 JPY
| /
| Brand | MONSTER SPORT |
| Series Name | LOWDOWN SPRING SET |
| Product Number | 520500-3900M |
| Compatible Car | MITSUBISHI TOWN BOX DS17W |

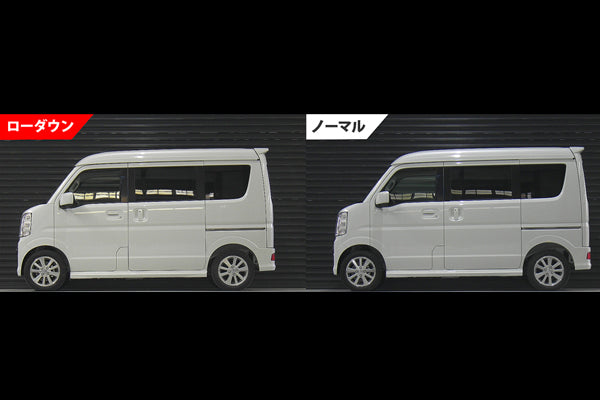

| Product Description | : Spring constant N / mm Spring constant (kgf / mm) Vehicle height down amount (reference) * 2 mm Minimum ground clearance * 2 * 3 mm Bump cushion specification Normal product is used without processing Other safety standards compliant * 3 Front: 32.5 (3.3) -20 ~ -25 125 ~ 130 Normal product is used without processing Rear: 35.0 (3.6) -15 ~ -20 ■ Easy low-down style > By replacing only the coil spring, you can produce a reasonably fearless styling. It conforms to safety standards and there is no problem with vehicle inspection. ■ Performance The handling is sharp while ensuring the ride quality on the street. The spring characteristics tuned in a well-balanced manner according to the normal damping force and changes in vehicle height realize stable driving. |
| Remarks | * 1 DA17V, DG17V, DS17V, DR17V van (commercial) grade, and 4WD vehicles have not been confirmed to be compatible (4WD vehicles are under development). * 2 The figures are reference data for the Every Wagon DA17W 2WD 4AT high roof vehicle (when full of fuel). It depends on the vehicle specifications (grade, presence / absence of supercharger, drive system, individual difference of vehicle, tire outer diameter, etc.), equipment and luggage condition, remaining fuel amount, etc. * 3 Reference data for the relevant parts related to the safety standards of the Road Transport Vehicle Law (as of February 2016) (all other than this product are normal products). In addition, it is limited to the case of use by the specified mounting and adjustment method. This does not apply depending on the combination of aero parts, exhaust system parts, etc. that are installed at the same time, and the changes over time of each part. * When installing this product, proper alignment (side slip) adjustment and optical axis adjustment are required. * Please also check here for vehicles equipped with genuine HID headlights. A special tool (SUZUKI scan tool "SUZUKI-SDTII") is required to perform the initial settings of the headlight auto-leveling system on this vehicle. * The effects of installing this product are not taken into consideration for the control and operation of collision damage mitigation brakes (pre-crash safe system / radar brake support, etc.) and false start suppression functions. As the vehicle height changes, the vehicle attitude and radar irradiation range in each vehicle behavior will change from those of a normal vehicle, which may affect control and operation depending on the situation. In addition, under daily driving (safe driving) when this product is installed (standard vehicle height in the case of vehicle height adjustment type), there will be no problems such as the check lamp always lighting or system malfunction. .. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
