MONSTER SPORT SP-X DUAL SPORTS MUFFLER EXHAUST SET FOR SUZUKI SWIFT SPORTS ZC33S K14C 253591-7650M

¥139,110 JPY ¥156,600 JPY

| /

Brand
MONSTER SPORT
Series Name
SP-X DUAL SPORTS MUFFLER EXHAUST SET
Product Number
253591-7650M
Compatible Car
SUZUKI SWIFT SPORTS ZC33S
Compatible Engine
K14C
Product Description
Main pipe diameter (from front pipe to before tail branch): φ60
Pipe diameter after branching to the left and right: φ50.8
Tail end diameter: φ100
Material: Main pipe: SUS304 Silencer: SUS304
Weight: Approximately 16.0kg (Genuine: Approximately 17.0kg)
Proximity exhaust noise: 91dB
Safety Standards for Road Transport Vehicles: Conformity
2016 Muffler Regulations: Conformity
Pre-certification system for replacement muffler: Correspondence

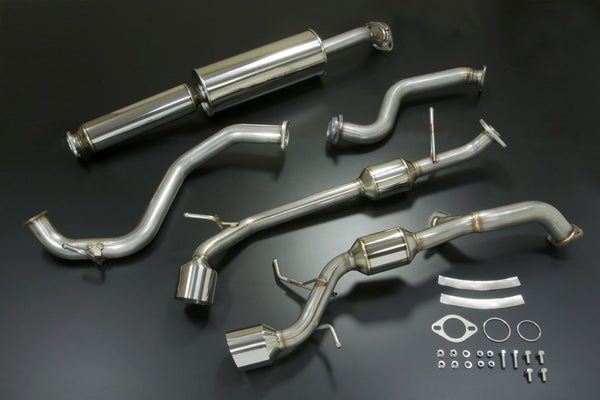

Set contents: ・ Tailpiece (2 divisions) ・ Center pipe (2 divisions) ・ Front pipe ・ Gasket set ・ Bolt nut set ・ Heat shield sheet x 2 ・ Explanatory documents
■ Sound tuning A sporty sound has been created while keeping the volume to a level that is premised on conforming to safety standards.
■ Exhaust performance The exhaust resistance is reduced by adopting φ60 (φ50.8 after branching to the left and right) from the front pipe to the branch of the tailpiece, and by handling the pipe in consideration of smooth exhaust flow. Even if you step up with a turbo kit etc., the specifications are such that you can maximize the performance.
The inside of the silencer has a straight structure to further improve the exhaust efficiency.
■ Quality A silencer and pipe made of stainless steel with excellent aesthetics and corrosion resistance are used, and the tail end is set to φ100 to make a slash cut that matches the inclination of the bumper. It creates a sense of unity with the vehicle in total and contributes to the upgrade of the rear style.

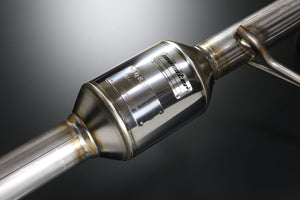

■ Compliant with various regulations In response to the pre-certification system for replacement mufflers", the silencer section is equipped with a certification acquisition display plate ("performance confirmed display").
Of course, it clears the "1998 noise regulation" and "technical standard for exterior (external protrusion regulation)", and you can install it with confidence because it conforms to the safety standard. "
Remarks
* The front pipe + center pipe of this set is not compatible with the Sp-X dual street muffler (241590-7650M).
* There may be a difference in the amount of protrusion of the left and right muffler tails from the bumper due to individual differences in the vehicle, but this is not a malfunction.
* If the muffler is heated during or immediately after running, there may be a difference in the amount of protrusion from the bumpers of the left and right muffler tails due to the effect of thermal expansion of the metal, but this is not a problem.
* Two or more workers are required to install this product.
* Can only be installed on compatible models.
* Compatibility with bumpers made by other companies and other aero parts has not been confirmed.
* Matching with parts made by other companies is not considered.
* The pipe layout and thickness are not the same as those of a normal vehicle, and there are places where the gaps in each part become smaller.
* Since the diameter of the muffler tail is larger than the normal one, the gap with the bumper will be smaller. Also, if the muffler tail comes into contact with the bumper during sports driving, the bumper may melt.
* The proximity exhaust noise level of this product and its conformity to various standards are those when it is new.
* The muffler is a consumable item. The volume will increase and corrosion will occur as it is used.
* Specifications of this product may be changed or discontinued without notice.
