¥96,940 JPY
| /
Brand | J'S RACING |
Series Name | WPC + PIP-SN 4.4 FINAL GEAR SET |
Product Number | FGW-P3-44 |
Compatible Car | HONDA CIVIC EP3 |
Compatible Engine | K20A |

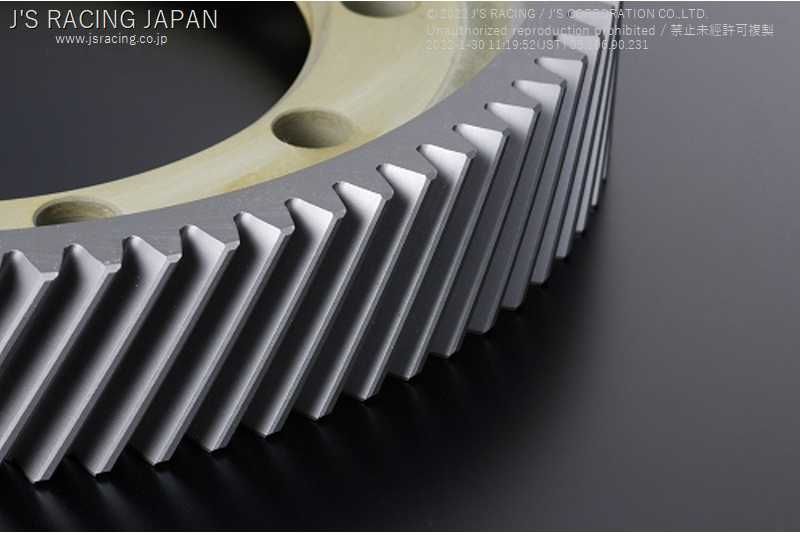

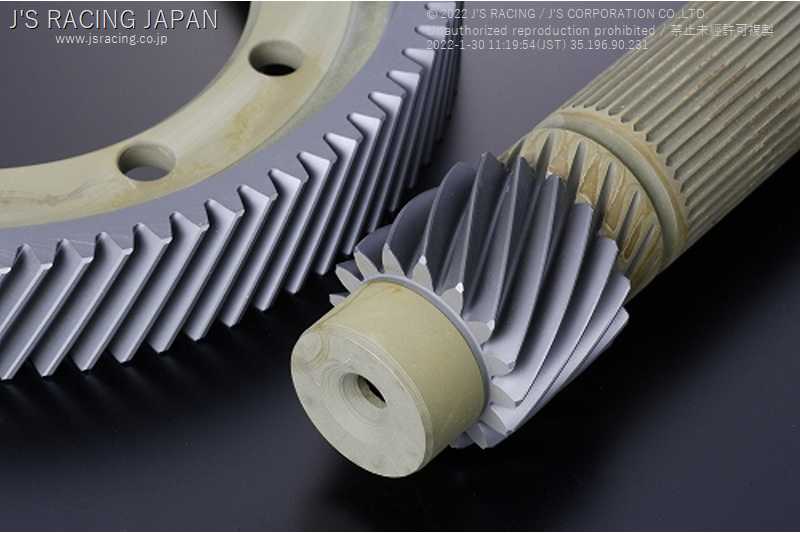

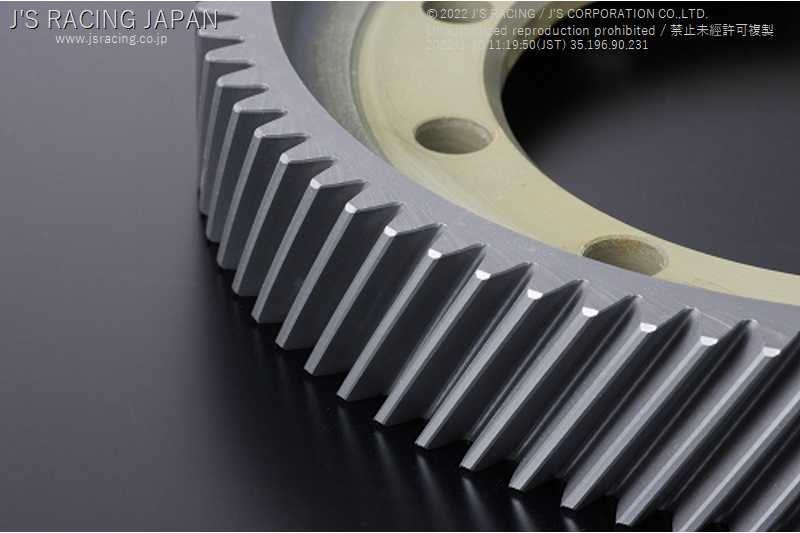

Product Description | Material: Aluminum forged 6061 Surface alumite J'S RACING Laser engraved Reduction ratio 4.388 WPC processed By replacing the final gear with a genuine ratio of 4.674 with 4.388, it becomes possible to make the entire gear high geared. increase. The torque peak value remains the same, and the torque curve is smoothly shifted to the high speed side, which is extremely effective for high-speed and medium-speed circuits. In VTEC cars, "I want to pull in 3rd speed without shifting up as it is", etc., It is also possible to aggressively set according to the driving scene. In addition, it will be possible to increase the maximum speed in TOP 6 speed. WPC processing that is effective for ensuring strength has been applied. Therefore, as a result of improving durability performance, oil temperature control performance, and quietness performance at the highest level, it has become possible to reliably avoid the danger of MT blow caused by final blow. Super Taikyu Race, Sprint Race, Time Attack, etc. Please use it in races where results are definitely required. It is an essential item to prevent retirement due to MT trouble and win the race. (Effect of WPC processing) Abbreviation for Wide Peening and Cleaning, special processing that is also used for F1. By injecting a special shot at high speed and locally raising it to the recrystallization temperature, the work strengthening of the heat treatment effect and forging effect is instantly repeated, and the residual austenite in the metal surface layer is converted to martensite and recrystallized. Miniaturize the tissue. This creates a structure with high hardness and toughness on the metal surface, which makes it possible to significantly increase the surface altitude. In addition, by increasing the internal compression residual stress, fatigue strength can be increased and gear chipping can be prevented. Furthermore, the dimples (smooth and very fine irregularities) that arrive during processing create an oil pool and prevent wear to a minimum. |

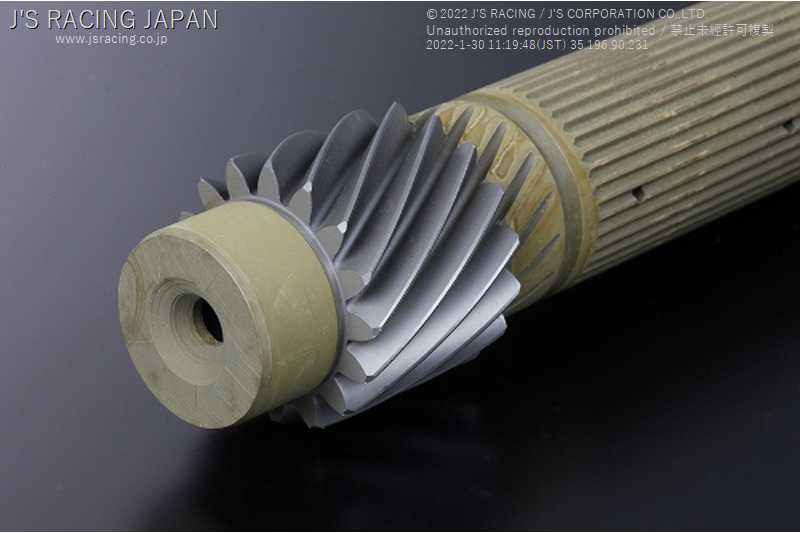

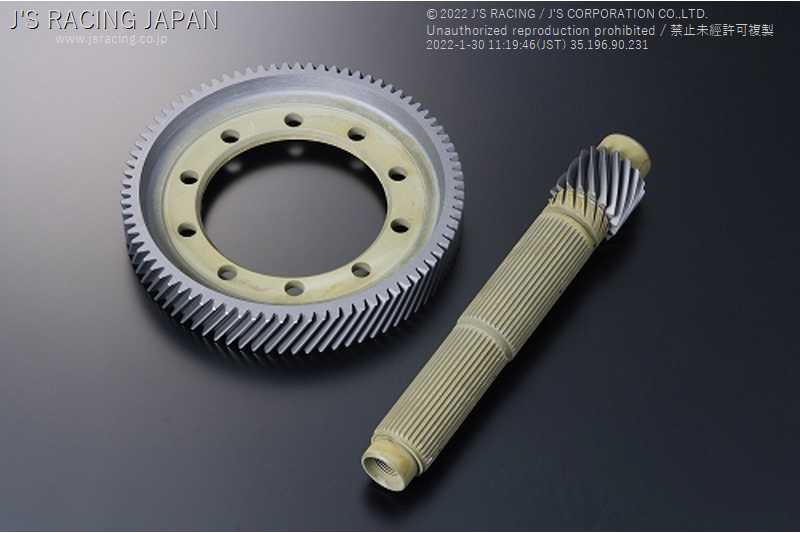

Remarks | Engine: K20A (Set contents) Counter shaft x 1 Ring gear x 1 Dedicated bearing x 1 We recommend precision installation at a pro shop. Please follow the specified torque and install correctly. |
Notes | Images are for illustration purpose only. Actual product may vary. |
