¥96,940 JPY
| /
Brand | J'S RACING |

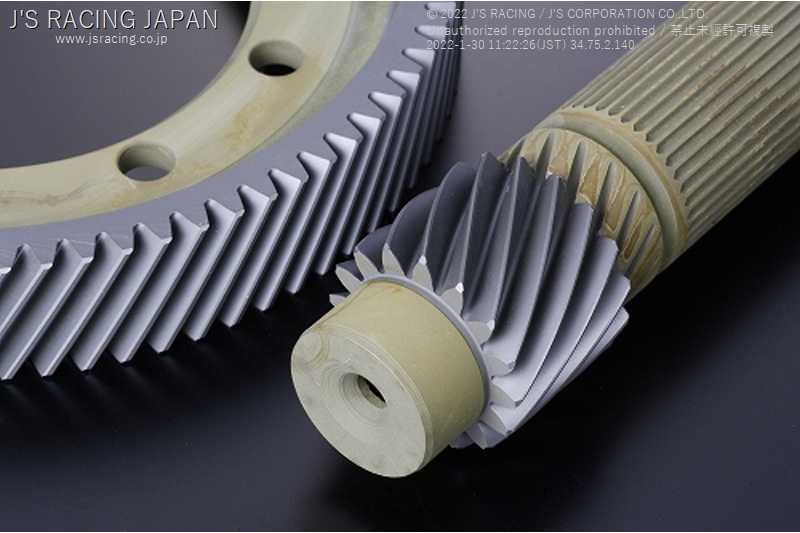

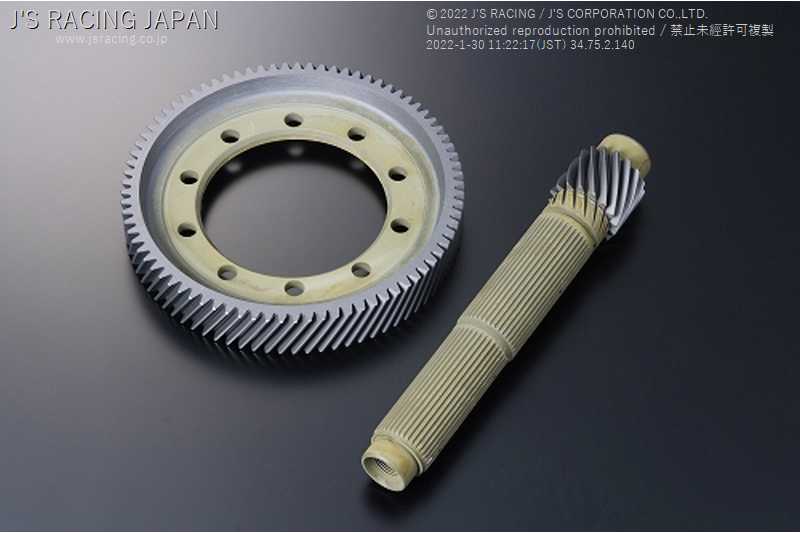

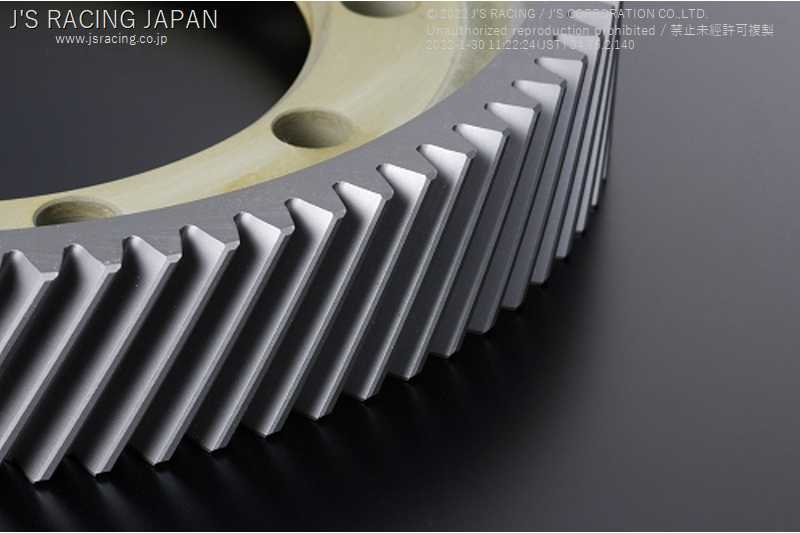

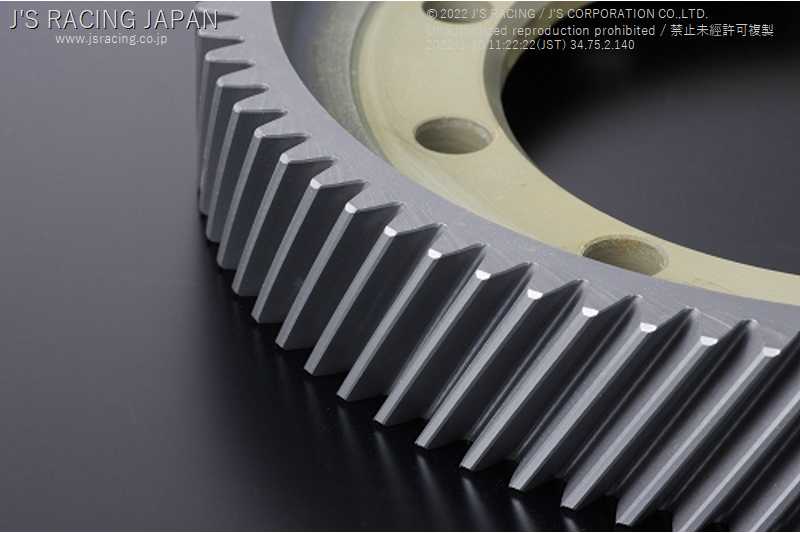

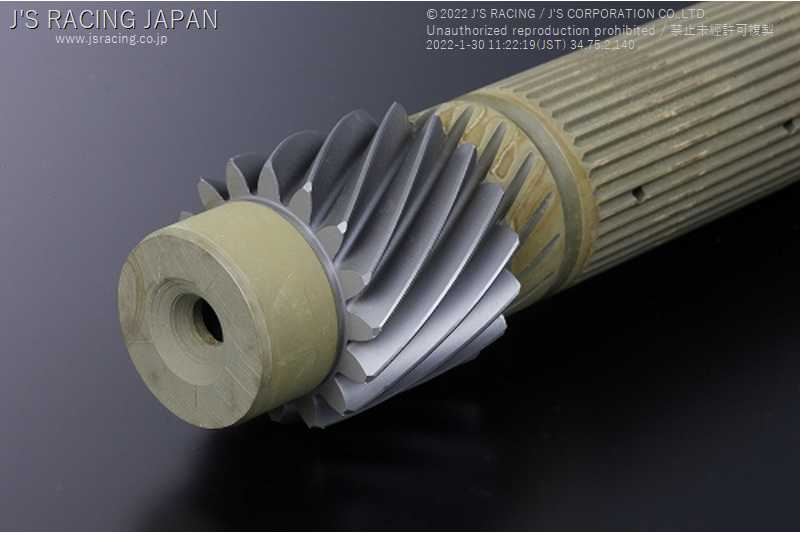

Series Name | WPC + PIP-SN 5.3 FINAL GEAR SET |
Product Number | FGW-FN2-53 |
Compatible Car | HONDA CIVIC FN2 |
Product Description | Material: 20CrMnTiH Forged carburizing and quenching Reduction ratio 5.333 WPC processed WPC processed reinforced final gear set. By replacing the final gear with a genuine ratio of 5.062, it is possible to make the entire gear low geared. The torque peak value remains the same, the torque curve shifts smoothly to the low rpm side, and the top speed is sacrificed a little, but the acceleration performance is improved and the connection of each gear is also improved. "I want to shift up before entering a corner", "I want to keep VTEC in 3rd gear, but I don't want to shift down to 2nd gear", "I want to use up all 6th gear", etc. However, by selecting the optimum final, it is possible to make settings that match the driving scene. The danger of diff blow can be avoided and the diff overhaul cycle can be extended without fail. (Effect of WPC processing) Abbreviation for Wide Peening and Cleaning, special processing that is also used for F1. By injecting a special shot at high speed and locally raising it to the recrystallization temperature, the work strengthening of the heat treatment effect and forging effect is instantly repeated, and the residual austenite in the metal surface layer is converted to martensite and recrystallized. Miniaturize the tissue. This creates a structure with high hardness and toughness on the metal surface, which makes it possible to significantly increase the surface altitude. In addition, by increasing the internal compression residual stress, fatigue strength can be increased and gear chipping can be prevented. Furthermore, the dimples (smooth and very fine irregularities) that arrive during processing create an oil pool and prevent wear to a minimum. |
Remarks | Engine: * We recommend precision installation at a professional shop. * Please observe the specified torque and install correctly. (Genuine specified tightening torque value 7.6kgf ・ m) * Replacement with the attached needle bearing is required. |
Notes | Images are for illustration purpose only. Actual product may vary. |
