¥144,513 JPY ¥154,000 JPY
| /
| Brand | REVOLUTION |
| Series Name | V-MOUNT OIL COOLER KIT |
| Product Number | RZN6-VOC |
| Compatible Car | TOYOTA 86 SUBARU BRZ ZN6 ZC6 |

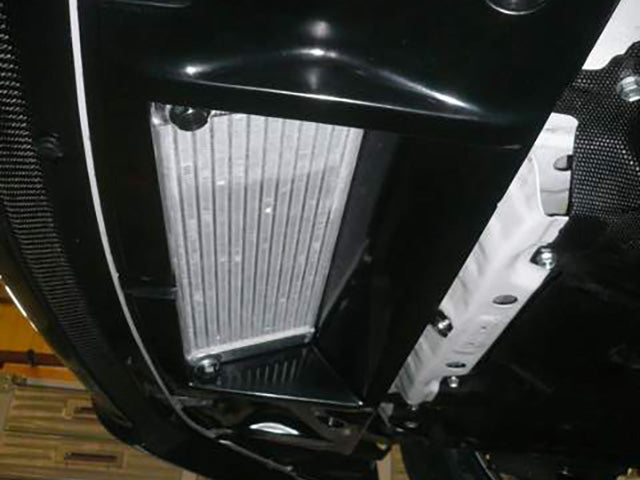

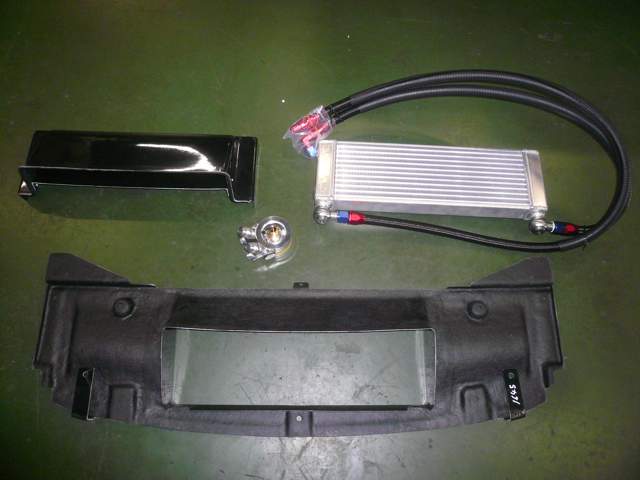

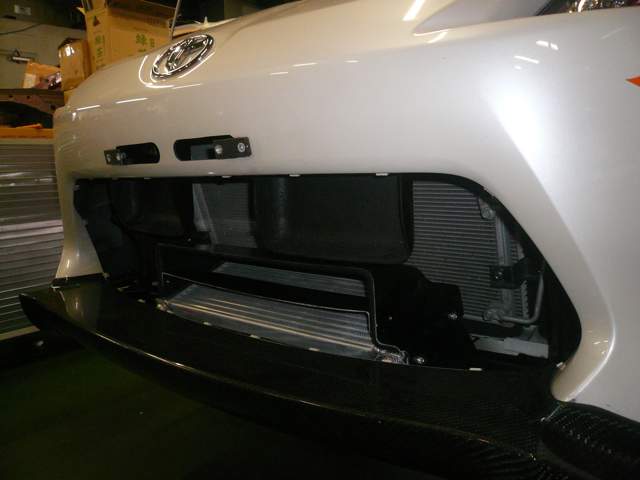

| Product Description | It is an oil cooler kit with an under panel. The hot air that has passed through the core is discharged to the floor surface so that it does not affect the radiator. The product will be delivered in a semi-finished state, and the installation is just replacing the under panel with the oil cooler and installing the sandwich block and piping, and there is no bumper removal or troublesome processing, just a conventional kit product. Compared to , it is easy to install. (Design registration pending) The core uses a highly reliable core made by HPI, and the sandwich block has a built-in thermostat to prevent overcooling in winter. *For products manufactured until the end of July 2016, use the Toyota part number 90915-10004 (3/4-16UNF) for the oil filter. Please use this oil filter for products delivered after August 2016. (TACTI part number V9111-0107 M20x1.5) *Our original oil element can also be used. Our oil element dimensions Height: 65mm Outer diameter: 65mm Inner diameter: M20×1.5 O-ring outer diameter: Φ65 O-ring inner diameter: Φ56.5 *For products delivered after 2014, a built-in 1/8PT sensor mounting port for oil temperature and hydraulic pressure is installed. *The specifications of the components of this product are subject to change without notice in order to improve workability. *Reference installation time 1.5 hours Since it is only a reference installation time at our company, please consider it as a guideline. 86 & BRZ early, late compatible |
| Notes | Images are for illustration purpose only. Actual product may vary. |
