MONSTER SPORT OIL COOLER KIT FOR SUZUKI SWIFT SPORTS ZC33S 165300-7650M

MONSTER SPORT

OIL COOLER KIT

165300-7650M

SUZUKI SWIFT SPORTS ZC33S

Oil cooler core: Number of core stages: 10 stages
Sandwich block: Built-in thermostat: 85 ° C valve opening Sensor mounting holes: 2 locations (M18 x P1.5) * Sold separately PT1 / 8 screw conversion adapter available
Oil Cooler hose: ・ Nylon mesh specification (with fitting)

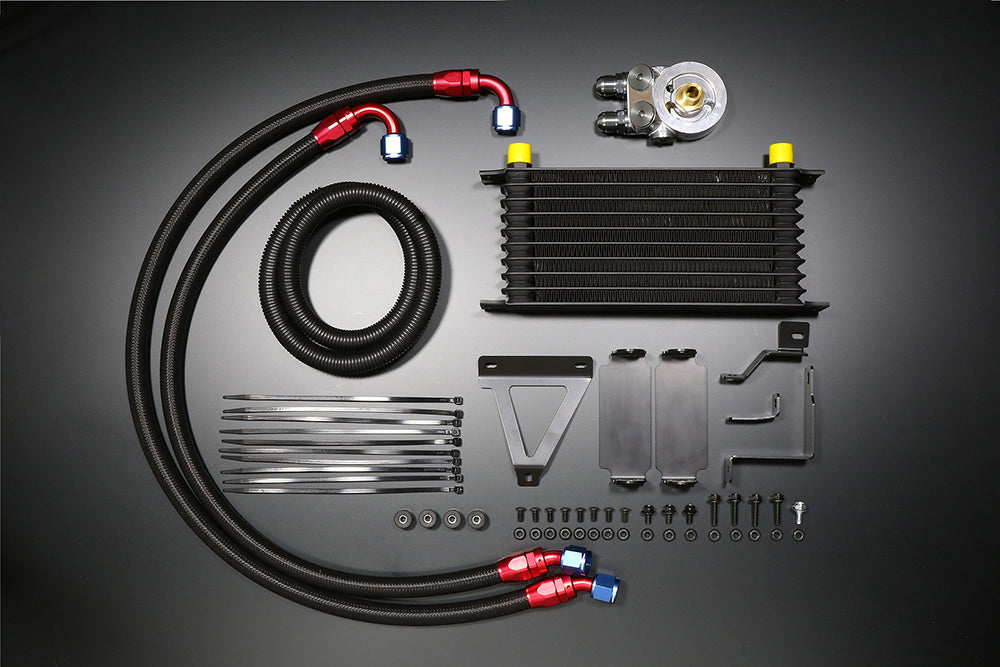

Components: ・ Oil cooler core (10 steps) x1 ・ Sandwich block (with thermostat) x1 ・ Oil cooler hose (long) x1 ・ Oil cooler hose (short) x1 ・ Corrugated tube (1m) x1 ・ Dedicated bracket set set ・ Bolt nut set set ・ Explanatory documents x1 ・ Processing pattern x1
Installation: ・ Drilling and cutting are required for the shroud in front of the radiator.
■ Oil cooler
When the engine output is increased or the engine is continuously driven under high temperature and high load such as circuit driving, the engine oil becomes hotter and the risk of trouble due to oil film shortage increases.
By installing an oil cooler, the cooling effect of engine oil is enhanced and stable oil temperature management at high temperature and high load is possible.
Proper oil temperature control affects not only engine and oil protection, but also engine performance and the overall cooling system.
■ Assembly design for exclusive use of vehicle type
A set of necessary parts such as brackets and fasteners required for installing the oil cooler in one package.
In addition to optimizing the shape of the bracket, we have carefully examined the special hose, mounting workability, and even one bolt in consideration of handling and bending, and tailored it exclusively for the vehicle model.
■ Optimization of cooler core
The core size and mounting position suitable for the required oil cooling are optimized, and the cooling factors of the entire engine system such as the influence on the water temperature and intake air temperature are taken into consideration.
■ Wind guide
In order to fully bring out the performance of the oil cooler, it is important to improve the cooling performance by enclosing the inflow air and ensuring that the cooling air is passed through the fins of the cooler core. ..

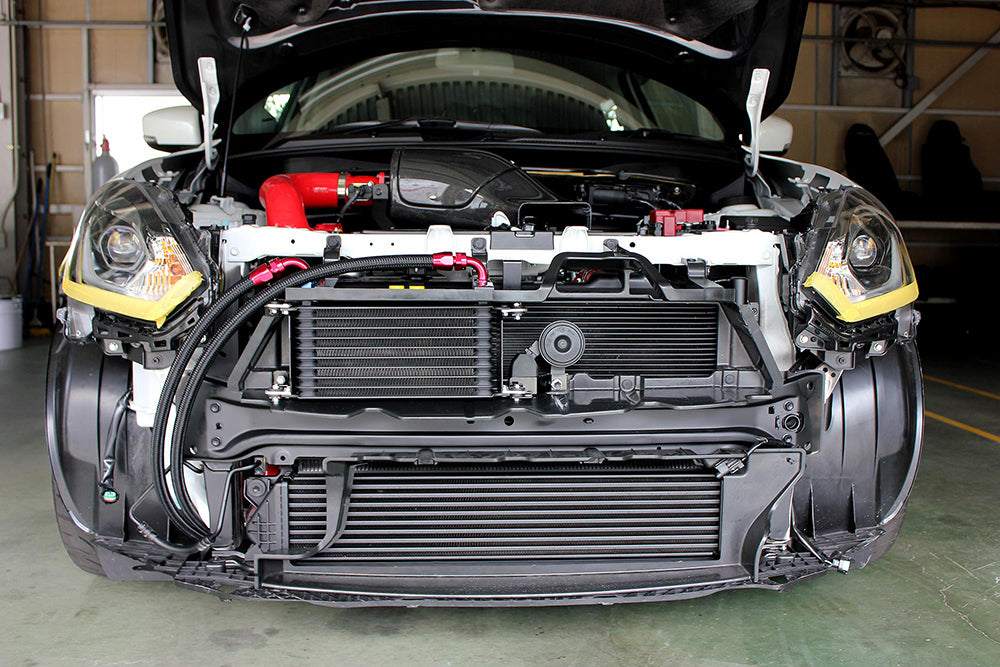

For Swift Sport [ZC33S], we laid out so that we can effectively guide the wind using the normal grill shroud.
■ Built-in thermostat
The built-in thermostat in the oil block prevents overcooling in winter.
When the oil temperature is low, the flow rate through the cooler core is throttled (not completely shut off).
The thermostat has a relief function, and when the oil pressure rises abnormally due to clogging of the oil line or crushing of the core, the oil is returned directly to the engine to protect the engine.
■ Low noise design
The cooler core uses a floating mount that is fixed via a rubber bush.
By carefully examining the shape of the bracket and the fixing points, the flow noise transmitted to the inside of the car has been thoroughly reduced.
■ Sensor attachment
By replacing the optional oil sensor attachment with the plug of the sandwich block of the oil cooler kit, a sensor (1 / 8PT size) such as an oil temperature gauge / oil pressure gauge can be installed. can.
■ "Sports Grill" In order to fully bring out the performance of the oil cooler, it is important to improve the cooling performance by enclosing the inflow air and ensuring that the cooling air is passed through the fins of the cooler core.
For Swift Sport [ZC33S], we laid out so that we can effectively guide the wind using the normal grill shroud.
■ Built-in thermostat
The built-in thermostat in the oil block prevents overcooling in winter.
When the oil temperature is low, the flow rate through the cooler core is throttled (not completely shut off).
The thermostat has a relief function, and when the oil pressure rises abnormally due to clogging of the oil line or crushing of the core, the oil is returned directly to the engine to protect the engine.
■ Low noise design
The cooler core uses a floating mount that is fixed via a rubber bush.
By carefully examining the shape of the bracket and the fixing points, the flow noise transmitted to the inside of the car has been thoroughly reduced.
■ Sensor attachment
By replacing the optional oil sensor attachment with the plug of the sandwich block of the oil cooler kit, a sensor (1 / 8PT size) such as an oil temperature gauge / oil pressure gauge can be installed. can.
■ "Sports Grill" In order to fully bring out the performance of the oil cooler, it is important to improve the cooling performance by enclosing the inflow air and ensuring that the cooling air is passed through the fins of the cooler core.
For Swift Sport [ZC33S], we laid out so that we can effectively guide the wind using the normal grill shroud.
■ Built-in thermostat
The built-in thermostat in the oil block prevents overcooling in winter.
When the oil temperature is low, the flow rate through the cooler core is throttled (not completely shut off).
The thermostat has a relief function, and when the oil pressure rises abnormally due to clogging of the oil line or crushing of the core, the oil is returned directly to the engine to protect the engine.
■ Low noise design
The cooler core uses a floating mount that is fixed via a rubber bush.
By carefully examining the shape of the bracket and the fixing points, the flow noise transmitted to the inside of the car has been thoroughly reduced.
■ Sensor attachment
By replacing the optional oil sensor attachment with the plug of the sandwich block of the oil cooler kit, a sensor (1 / 8PT size) such as an oil temperature gauge / oil pressure gauge can be installed. can.
■ "Sports Grill" ■ Built-in thermostat
By incorporating a thermostat in the oil block, overcooling in winter is prevented.
When the oil temperature is low, the flow rate through the cooler core is throttled (not completely shut off).
The thermostat has a relief function, and when the oil pressure rises abnormally due to clogging of the oil line or crushing of the core, the oil is returned directly to the engine to protect the engine.
■ Low noise design
The cooler core uses a floating mount that is fixed via a rubber bush.
By carefully examining the shape of the bracket and the fixing points, the flow noise transmitted to the inside of the car has been thoroughly reduced.
■ Sensor attachment
By replacing the optional oil sensor attachment with the plug of the sandwich block of the oil cooler kit, a sensor (1 / 8PT size) such as an oil temperature gauge / oil pressure gauge can be installed. can.
■ "Sports Grill" ■ Built-in thermostat
By incorporating a thermostat in the oil block, overcooling in winter is prevented.
When the oil temperature is low, the flow rate through the cooler core is throttled (not completely shut off).
The thermostat has a relief function, and when the oil pressure rises abnormally due to clogging of the oil line or crushing of the core, the oil is returned directly to the engine to protect the engine.
■ Low noise design
The cooler core uses a floating mount that is fixed via a rubber bush.
By carefully examining the shape of the bracket and the fixing points, the flow noise transmitted to the inside of the car has been thoroughly reduced.
■ Sensor attachment
By replacing the optional oil sensor attachment with the plug of the sandwich block of the oil cooler kit, a sensor (1 / 8PT size) such as an oil temperature gauge / oil pressure gauge can be installed. can.
■ "Sports Grill" The cooler core uses a floating mount that is fixed via a rubber bush.
By carefully examining the shape of the bracket and the fixing points, the flow noise transmitted to the inside of the car has been thoroughly reduced.
■ Sensor attachment
By replacing the optional oil sensor attachment with the plug of the sandwich block of the oil cooler kit, a sensor (1 / 8PT size) such as an oil temperature gauge / oil pressure gauge can be installed. can.
■ "Sports Grill" The cooler core uses a floating mount that is fixed via a rubber bush.
By carefully examining the shape of the bracket and the fixing points, the flow noise transmitted to the inside of the car has been thoroughly reduced.
■ Sensor attachment
By replacing the optional oil sensor attachment with the plug of the sandwich block of the oil cooler kit, a sensor (1 / 8PT size) such as an oil temperature gauge / oil pressure gauge can be installed. can.
■ "Sports Grill"

* This product is treated as a "performance-oriented part". When using it, strictly observe the laws and rules, pay attention to safety, and handle it under the responsibility of the user.
* This product is a part that requires advanced knowledge and skills regarding assembly and setting. Please install at a monster sports retail store or an experienced tuning pro shop. If you do not know the personal installation or sales channel, we will not accept any complaints regardless of whether the product is defective or not.
* When this product is installed, the capacity of the engine oil used will increase by about 0.7 to 0.9L compared to when it is not installed.
* Matching with parts made by other companies is not considered.
* Cannot be installed on other than the above compatible models.
* Specifications of this product may be changed or discontinued without notice.
